ECS Series IPC: Integrated Thermal Chassis and EMC Grounding Design — Engineering Implementation

YDSTECH Engineering Team · April 2026 · Intended readers: Industrial computer design engineers / procurement engineers

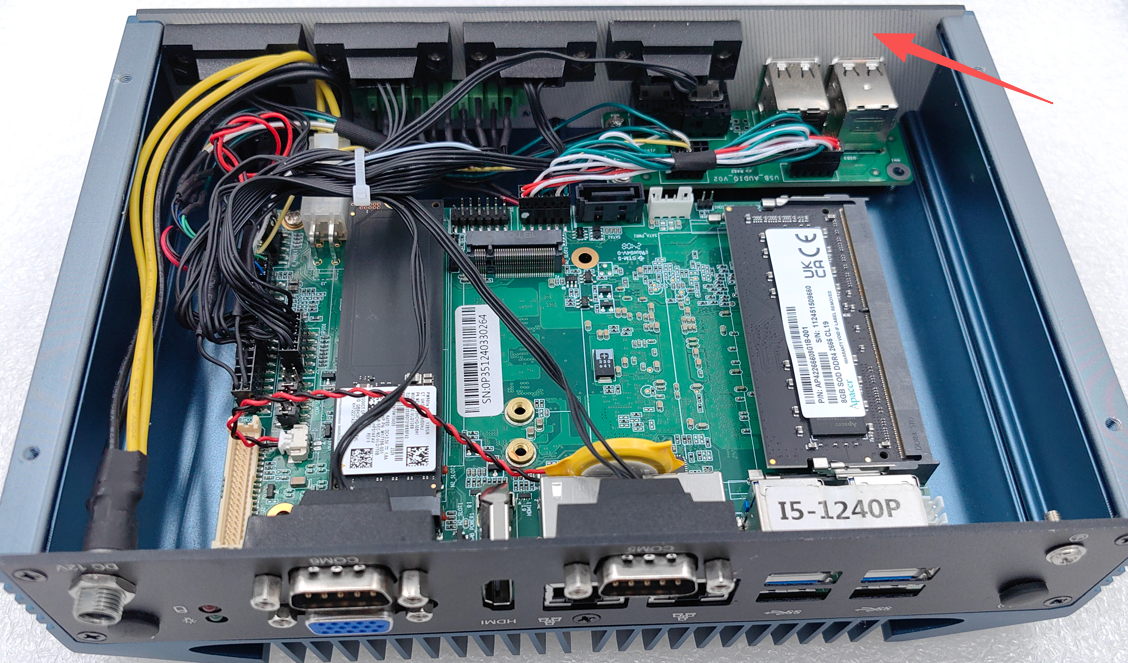

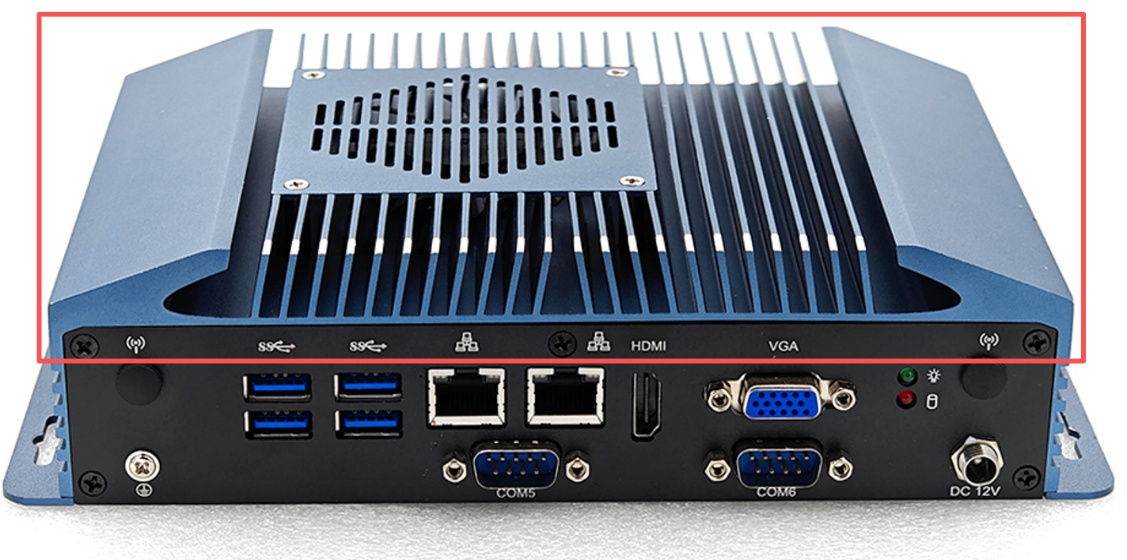

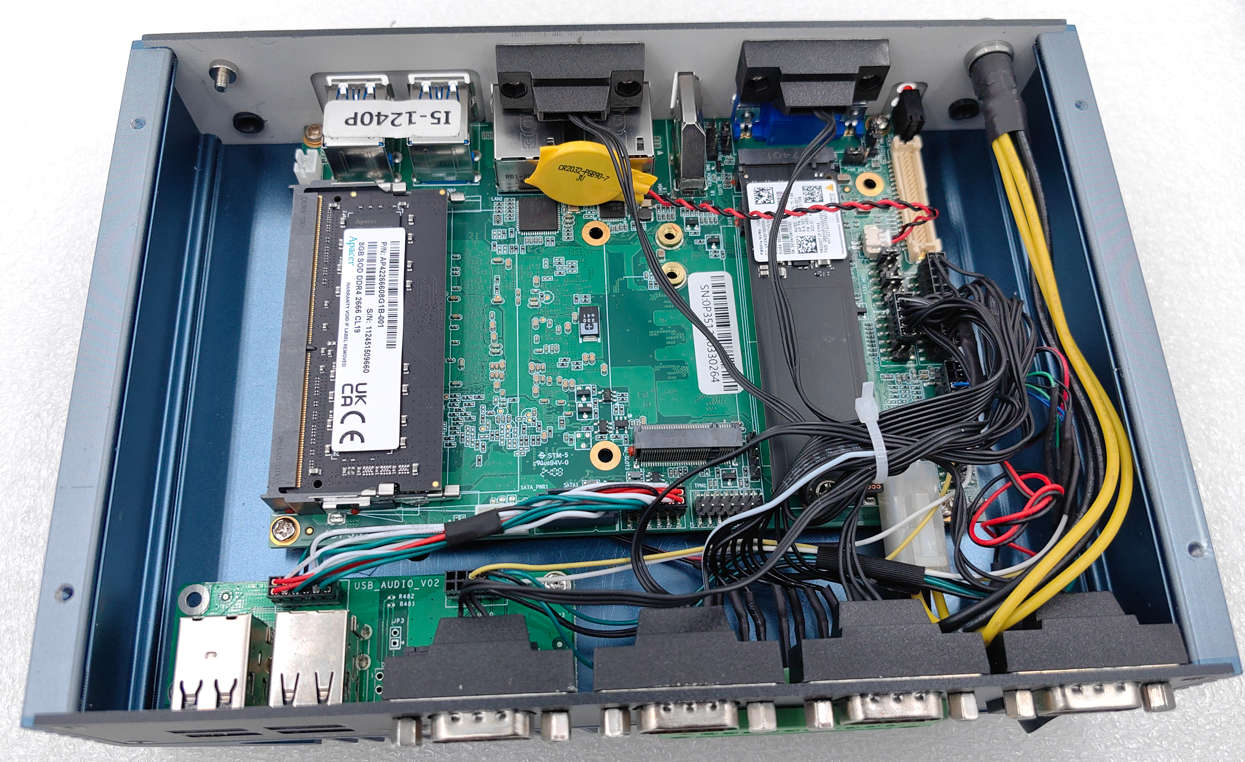

▲ ECS Series IPC — Integrated aluminium extrusion thermal chassis (Atom/N-series CPU: fanless passive cooling; Core-series CPU: active + passive combined cooling)

This article presents the engineering implementation of two design pillars in the YDSTECH ECS Series IPC: the integrated passive thermal chassis and the EMC/grounding enhancement design. It also provides in-depth analysis of four key manufacturing challenges — high-aspect-ratio fin extrusion, press-fit standoff perpendicularity, mirror-finish chamfer machining, and anodising colour consistency — including root-cause analysis and proven countermeasures.

1. Integrated Thermal Chassis Design

▌ 1.1 Design Principle: The Chassis Is the Heatsink

The ECS Series chassis is machined from a single aluminium extrusion. The outer shell doubles as a large-area heatsink, with cooling fins formed integrally during extrusion — eliminating the thermal interface resistance between a discrete heatsink and the chassis entirely.

• High-density deep-fin (high-fin) structure: significantly increases heat-exchange surface area, achieving industrial-grade heat dissipation under natural convection

• Top + side combined thermal path: bi-directional heat conduction, compatible with horizontal, vertical, and multiple mounting orientations

• Atom / N-series CPU variants: fully fanless passive cooling — no dust ingestion, no bearing wear, no vibration coupling

• Core-series CPU variants: active + passive combined cooling — fan supplements forced convection for higher thermal envelopes

• Both configurations validated for 24 × 7 continuous full-load operation across the industrial temperature range

▌ 1.2 Key Thermal Design Parameters

Thermal performance is governed by the combined optimisation of: fin count × effective height (heat-exchange area); fin pitch (natural-convection flow resistance); aluminium alloy thermal conductivity (6063-T5 ≈ 200 W/m·K); and thermal interface material (TIM) thickness and conductivity. These parameters are jointly optimised using thermal simulation tools during the design phase.

2. EMC / Grounding Enhancement Design

▌ 2.1 Root Cause: The Insulating Effect of the Anodised Layer

Aluminium anodising (Al₂O₃) has a resistivity of 10¹² – 10¹⁵ Ω·cm — it is fundamentally an insulator. When panel mating surfaces rely on anodised faces for electrical contact, chassis-to-chassis grounding impedance can reach tens of ohms, resulting in: poor chassis grounding continuity; inability to shunt high-frequency EMI currents effectively; and susceptibility to conducted interference coupling into the system through the ground path.

▌ 2.2 Solution: Conductive Treatment of Key Contact Surfaces

YDSTECH applies targeted conductive treatment to the critical mating surfaces of the front/rear panels and base cover:

1. Selective removal of the anodised insulating layer: The anodised layer is removed at key contact zones — fastener boss surrounds and panel edge contact strips — exposing bare aluminium for direct metal-to-metal low-impedance contact.

2. Surface protection of bare aluminium: Chromate conversion coating (or a Cr-free alternative) is applied to the stripped areas, maintaining electrical conductivity while providing baseline corrosion protection.

3. Assembly clamping force design: Fastener pre-load is calculated to ensure the contact surfaces maintain stable low-impedance bonding throughout the product service life, resisting degradation from thermal cycling and vibration.

▌ 2.3 Key Metrics: Before vs. After Conductive Treatment

3. Key Manufacturing Challenges and Solutions

The high-density thermal fin structure and precision surface finish of the ECS Series impose four major manufacturing challenges:

▌ 3.1 Large-Format High-Aspect-Ratio Fin Extrusion

With fin aspect ratios significantly exceeding standard heatsink profiles, the primary failure modes during extrusion are: thin-fin underfill due to insufficient pressure; non-uniform flow velocity causing local distortion; and long-fin straightness exceeding assembly tolerances.

▌ 3.2 Tall Press-Fit Standoff Perpendicularity Control

Tall standoffs (height significantly exceeding standard spec) lack sufficient lateral guidance during press-fit, making axial misalignment during pressing a high-probability failure mode. Even 0.3 mm of tilt can cause fan mounting interference or thread coaxiality failure.

4. Bespoke guided press-fit fixture: An extended guide sleeve matched to the standoff height is fabricated, eliminating lateral degrees of freedom throughout the full pressing stroke.

5. Staged press-fit parameter control: A segmented force-displacement curve is used: low-speed alignment in the initial stage, full press force applied in the final stage — eliminating impact-induced tilt.

6. Pre-machined guide datum hole: A precision guide hole is pre-machined at each standoff location, providing a secondary alignment datum to reinforce perpendicularity.

▌ 3.3 Mirror-Finish Chamfer (C-Angle) Machining

ECS Series edge chamfers require a mirror finish of Ra ≤ 0.4 μm. Standard end-mill profiles do not match the required chamfer geometry, resulting in profile deviation and surface roughness that fails the specification. The following process measures are applied:

• Custom cutter profile: the cutter geometry is purpose-designed to match the chamfer contour, enabling single-pass profile forming

• Multi-pass finishing strategy: roughing removes the bulk of material; successive finishing passes progressively converge on the final profile

• Cutting parameter optimisation: spindle speed and feed rate are tuned for aluminium mirror-finish requirements, suppressing built-up edge and chatter

• Pre-anodising surface preparation: the mirror-finish surfaces undergo dedicated polishing prior to anodising to compensate for minor gloss attenuation during the anodising process

▌ 3.4 Long-Fin Blast Finishing + Anodising Colour Consistency

High-density fin arrays create a shadowing effect during blast finishing: abrasive particles cannot reach fin root areas and inner walls uniformly, producing inconsistent surface roughness. This propagates into visible colour variation after anodising, affecting batch-to-batch appearance uniformity. The following countermeasures are applied:

• DFM fin-pitch optimisation: fin spacing is relaxed to the extent permitted by thermal requirements, reducing shadowing severity

• Multi-angle sequential blasting: fin tops, sidewalls, and root zones are blasted separately in dedicated sub-processes to ensure full coverage

• Bespoke anodising rack design: racks are custom-built for high-fin profiles to achieve uniform current distribution, minimising current density differential between fin roots and tips

• Three-zone colour reference standard: upper / mid / lower zone reference coupons are fabricated, a colour tolerance band is defined, and the standard is incorporated into both incoming and outgoing IQC inspection

4. Engineering Summary

The ECS Series integrated thermal chassis delivers exceptional thermal performance while imposing demanding requirements on extrusion precision, press-fit process control, precision machining, and surface treatment capability. The systematic resolution of the EMC grounding design challenge and four manufacturing difficulties is the foundation that enables the ECS Series to achieve industrial-grade reliability and consistent surface quality at scale.

Two design outcomes are inseparable: if the design intent is correct but manufacturing variation is high, appearance defects and assembly issues will reach the customer. If manufacturing capability is strong but the design lacks sufficient engineering depth, thermal and EMC shortcomings will surface in the field over time.

YDSTECH has specialised in industrial computer design and manufacturing for 27 years. For technical enquiries or procurement consultations, please contact our engineering team.
