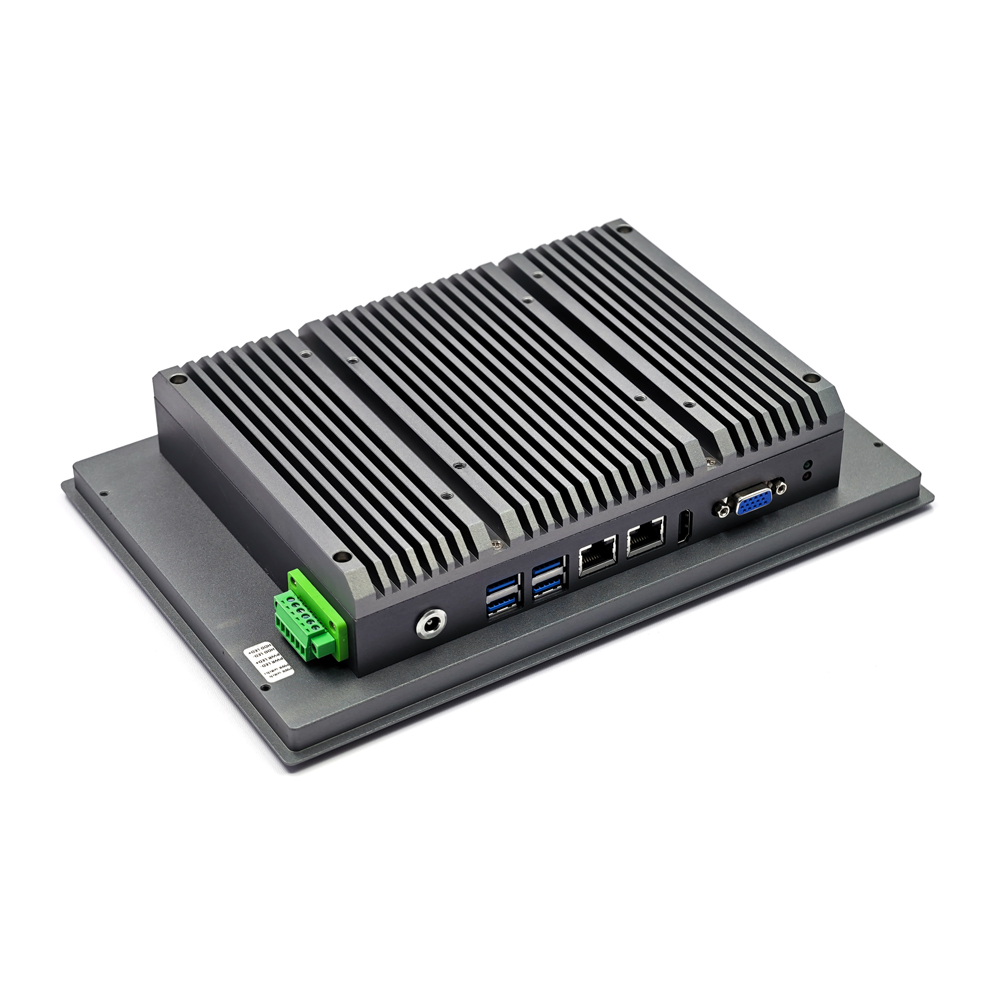

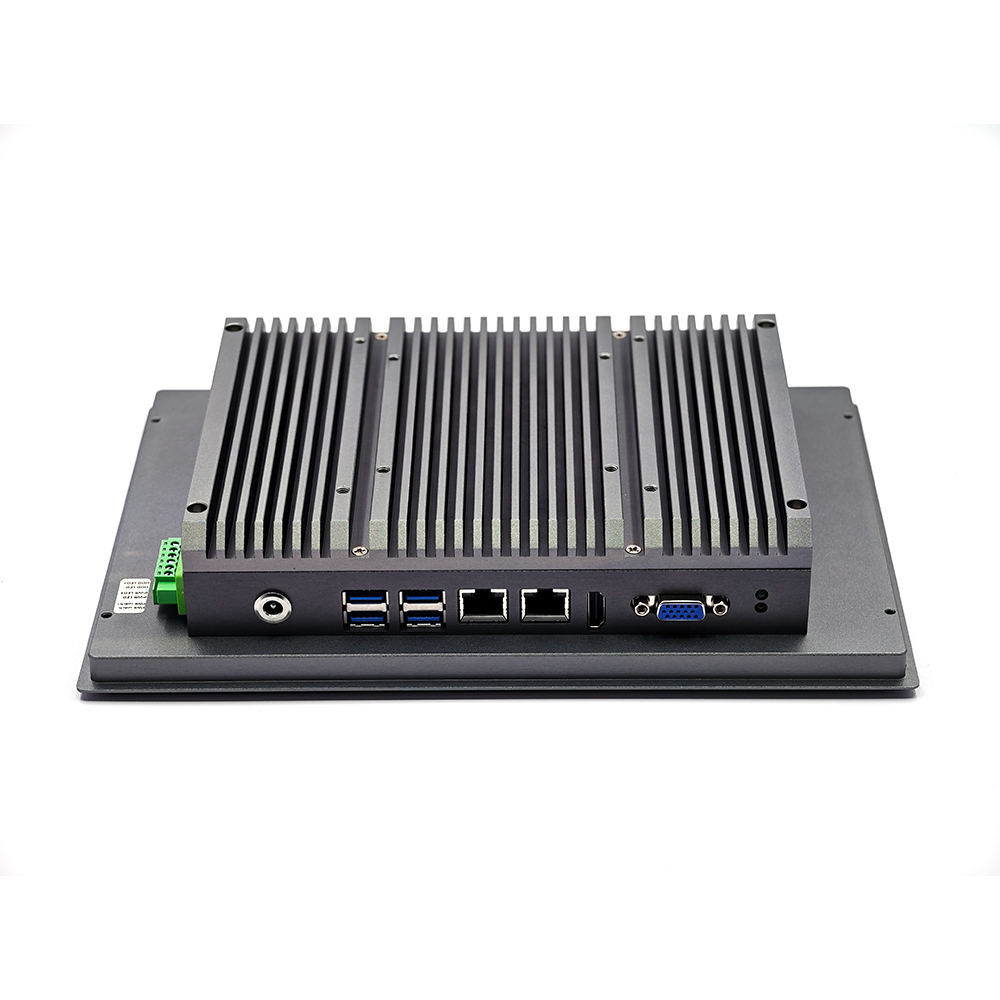

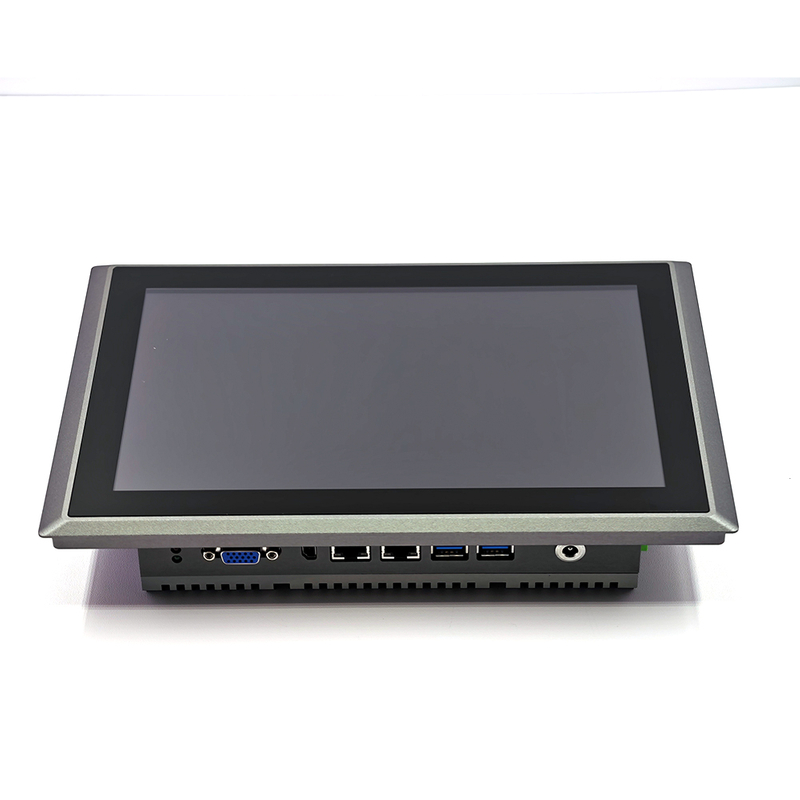

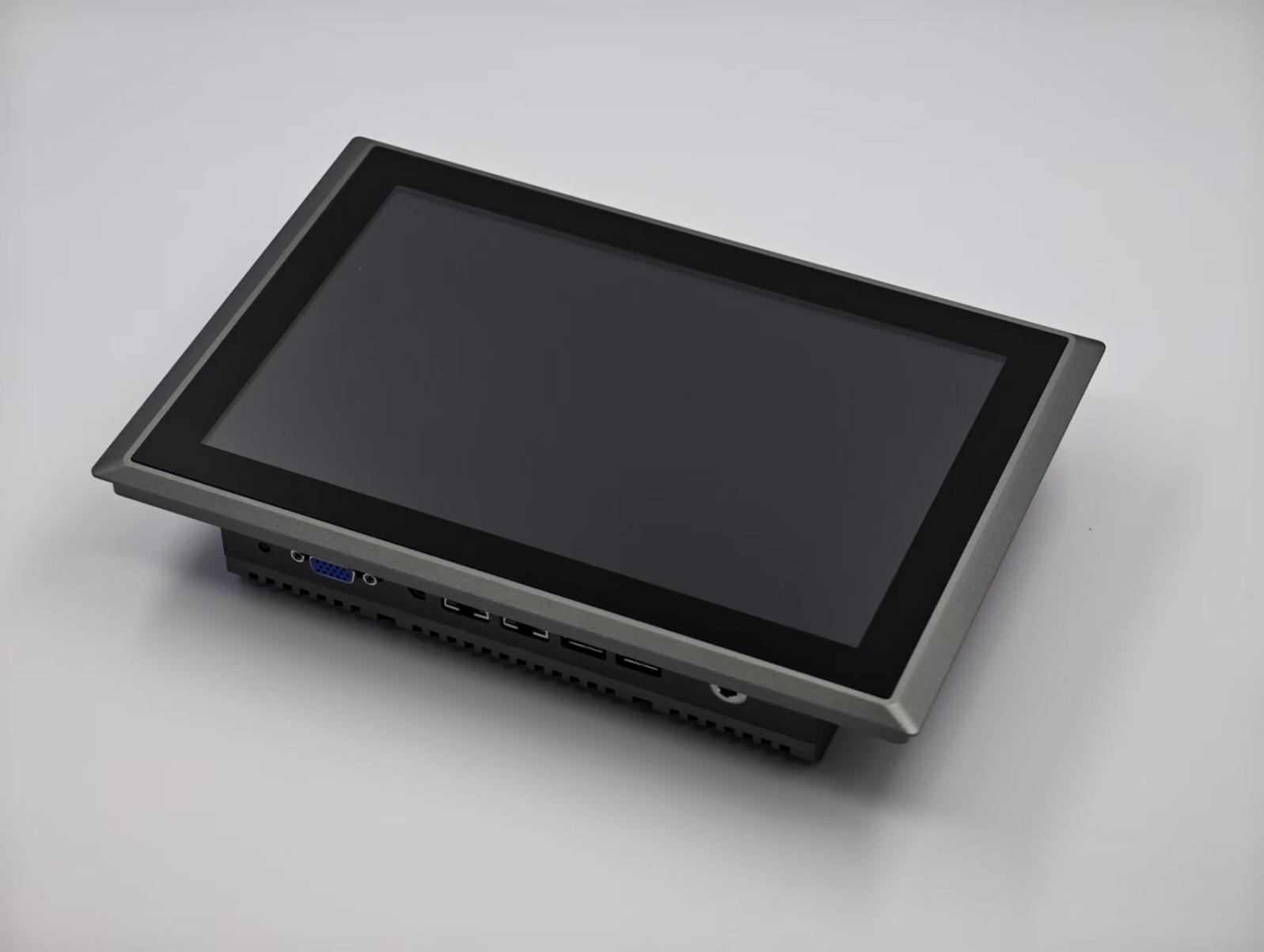

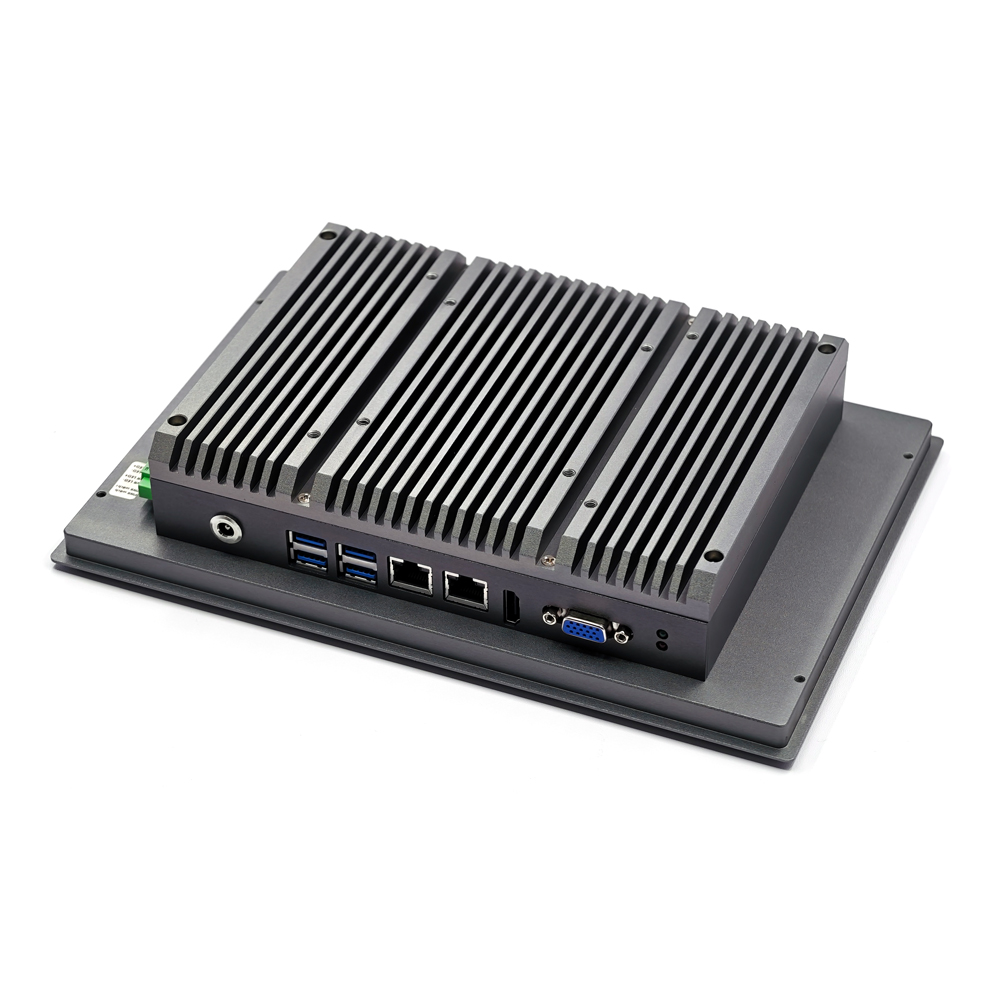

PPC-ADP351 10.1 inch 1000 nits high brightness industrial panel PC

model

PPC-ADP351

processor

Intel Core ™ i3-1215U,2C+4A , up to 4.4GHz(P-Core) and 3.3GHz(E-Core),15W-55W
Intel Core i 5 - 1235U,2C+8A,up to 4.4 GHz (P-Core) 3.3 GHz (E-Core),15W-55W

Intel Core i 7-1255U , 2C +8A,up to 4.7 GHz (P-Core) 3.5 GHz (E-Core),15W-55W

Memory

Two dual-channel SO-DIMM DDR4 memory modules, maximum 64 GB, frequency 2133/2666/3200MHz

Network card

Supports two 10/100/1000Mbit Ethernet ports

PCIe

Supports one M.2 Wi-Fi port ( E-Key 2230 PCIe x1 )
and one M.2 4G/5G port ( B-Key 3042/3052 USB2.0 & PCIe x1 ).

Extend

SATA

Supports one SATA 3.0 interface and one M.2 SSD ( M-Key 2280 SSD NVMe ).

audio

One 3.5mm audio output and one microphone input jack

USB

Supports 4 USB 3.0 ports and 4 USB 2.0 ports.

serial port

2 COM ports (RS232/422/485 optional), supports expansion to 6 COM ports (2 of which are optional RS232/422/485).

Physical resolution

1280x800

Display area

216.96mm × 135.60mm

color

16.7M colors

lumen

The center brightness of the display should not be less than 1000 cd/ m²

LCD mode

Single channel, 8-bit LVDS

Backlight mode

LED backlight module

Power interface

DC12V

temperature

Operating temperature : -20°C to + 60 °C (optional: -40°C to + 70 ° C)

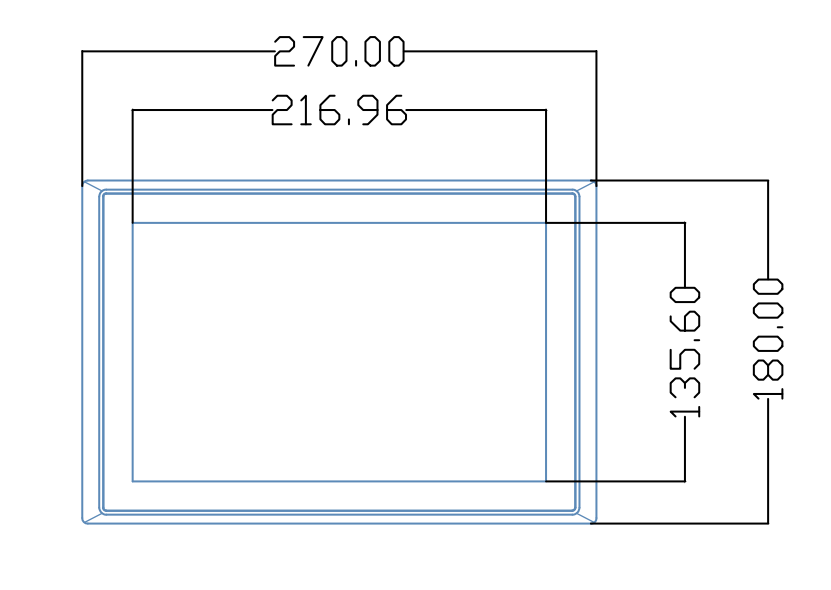

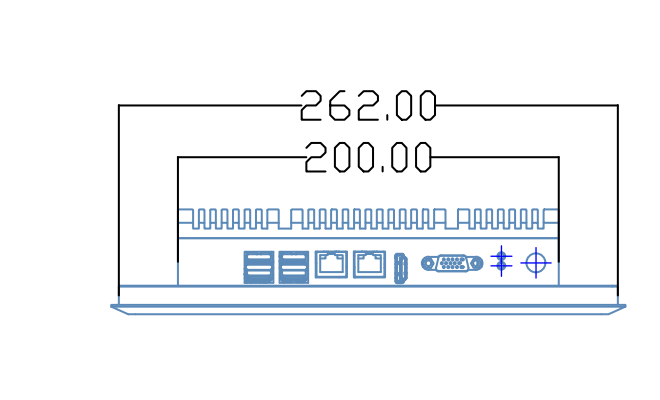

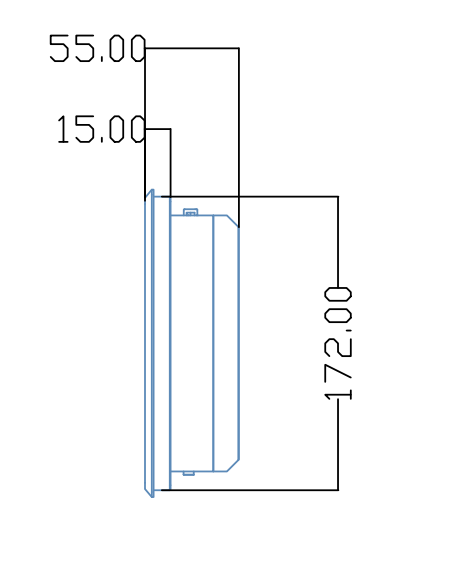

Overall dimensions

270mm (H) × 180mm (V) × 55mm (D)

operating system

Windows 10 , Windows 11 , Linux

weight

3Kg (max)

MTBF

30000h

model

describe

PPC-ADP351- I3/ 1215U

10.1-inch high-brightness screen, optional memory and hard drive.

PPC-ADP351 - I5 / 1235U

10.1-inch high-brightness screen, optional memory and hard drive.

PPC-ADP351 - I7 / 1235U

10.1-inch high-brightness screen, optional memory and hard drive.
