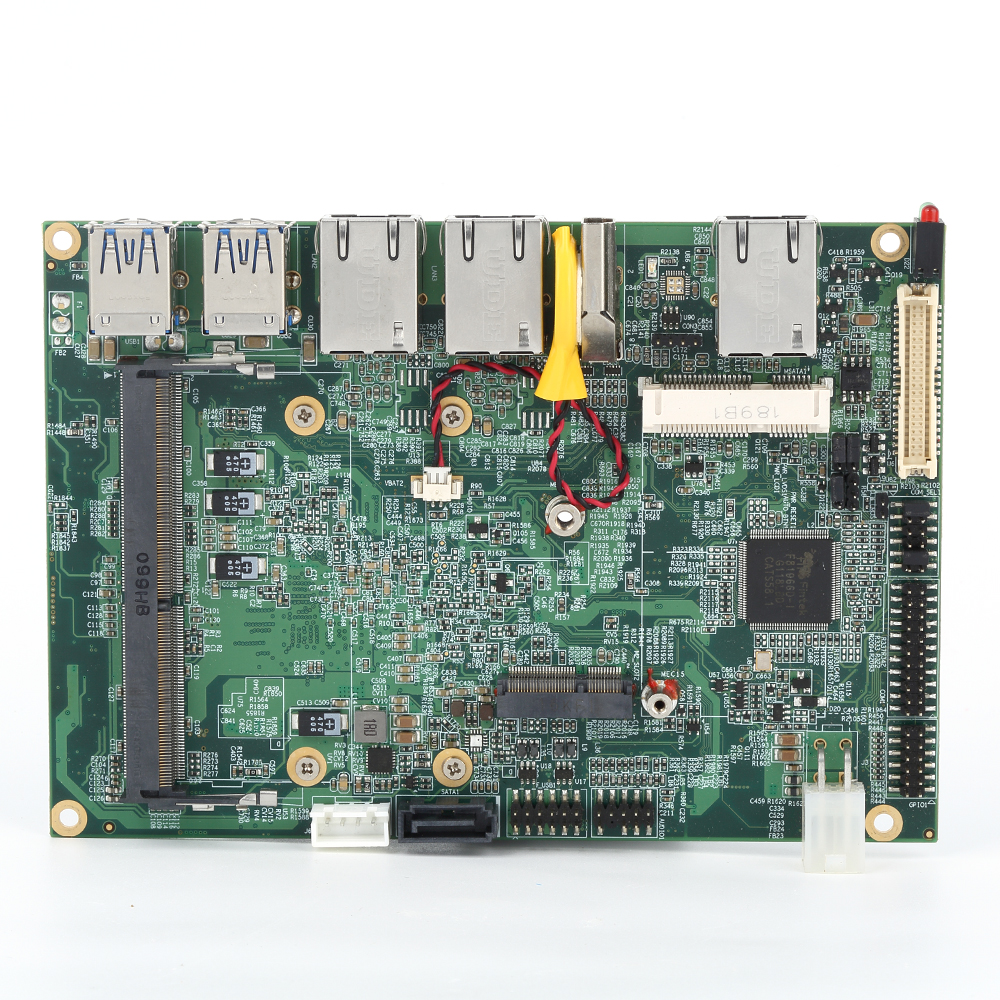

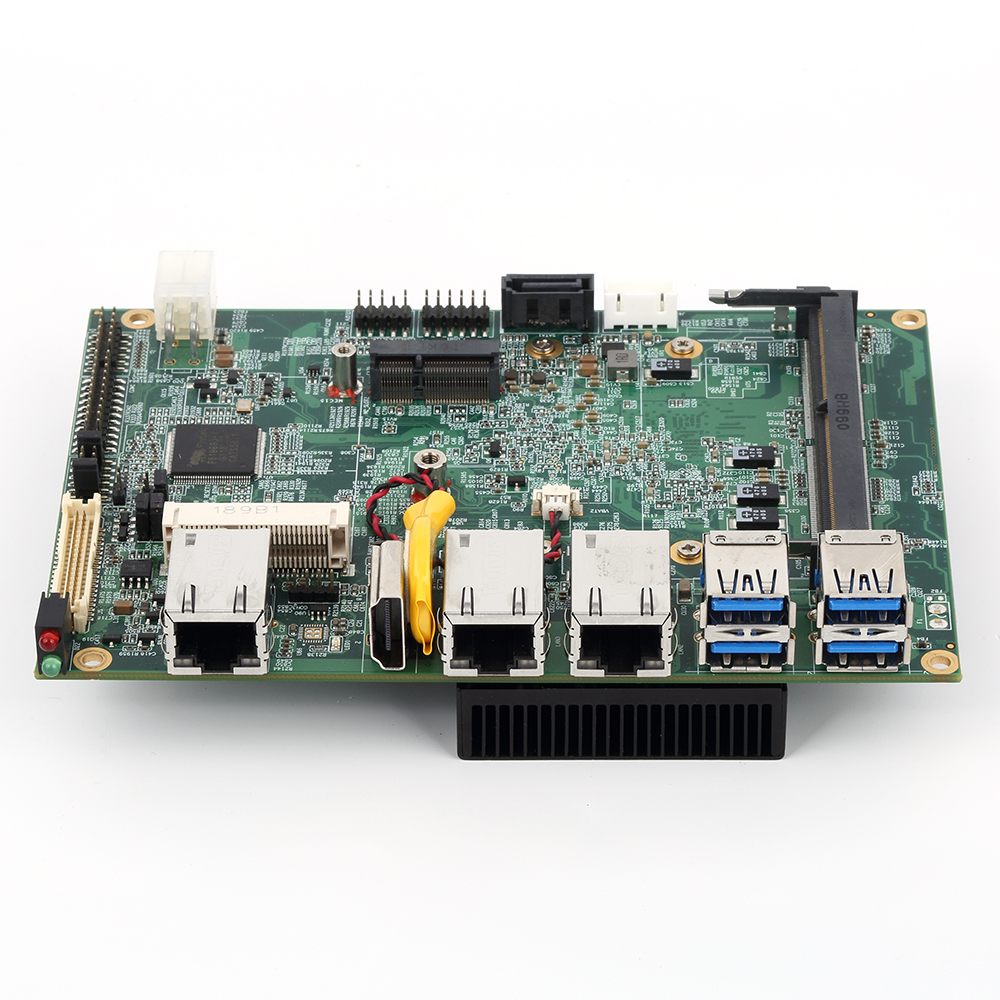

YDS TECH PCM-E352 3.5-inch Wide Temperature Industrial Motherboard Comprehensive Analysis | High-Performance Embedded Mainboard for Industrial Applications

The PCM-E352 is a new-generation 3.5-inch wide temperature embedded mainboard launched by YDS TECH, a professional wide temperature industrial PC manufacturer and x86 industrial computer manufacturer. Based on the Intel Elkhart Lake architecture SOC processor, it delivers significant improvements in computing power, display performance, interface bandwidth and system compatibility compared to the previous-generation Baytrail platform. This industrial motherboard focuses on medium computing power, multi-display output and high-speed peripheral access, making it ideal for embedded scenarios requiring higher performance such as industrial automation, new energy and smart transportation. Below is a detailed analysis from six dimensions: core specifications, hardware interfaces, key functions, application scenarios, product advantages and target customers.

1. Core Hardware Specifications

1.1 Basic Form Factor and Computing Power

• Form Factor: Standard 3.5-inch industrial motherboard with dimensions of 146mm × 102mm, compatible with mainstream 3.5-inch industrial PC chassis for easy equipment upgrade and replacement.

• Processor: Onboard Intel Elkhart Lake series SOC, covering Celeron N/J series and industrial-grade Atom X6xxx series, with power consumption ranging from 4.5W to 12W, balancing performance and energy efficiency. Supported models include:

• Low-power dual-core: Celeron N6210/N6211, Atom X6200FE/X6212RE/X6211E

• High-performance quad-core: Celeron J6412/J6413/N6415/J6426, Atom X6414RE/X6427FE/X6413E/X6425RE/X6425E With a maximum turbo frequency of 3.0GHz, it delivers approximately 2-3 times higher CPU performance and significantly improved GPU performance compared to the J1900 platform.

• Memory: Single SO-DIMM DDR4 slot (1.2V low voltage), supporting up to 16GB of memory at a maximum frequency of 3200MHz, meeting the needs of large data processing tasks.

• Cooling Solution: Air cooling design to ensure stable operation of the processor under high load; optional wide temperature version available for extreme environments.

1.2 Environmental and Power Supply Specifications

• Operating Temperature: Standard version: -20°C ~ +60°C; optional enhanced wide temperature version: -40°C ~ +75°C, covering most industrial site environments.

• Power Supply: +12V ~ +24V DC wide voltage input, recommended +12V, adapting to non-standard power supply scenarios in industrial sites.

• Operating Systems: Native support for Windows 10, Windows 11 and Linux, compatible with the latest industrial software and AI applications.

1.3 Storage Configuration

• Equipped with 1 standard SATA3.0 interface + 1 mSATA interface for high-speed solid-state storage; additionally provides 1 M.2 E-key 2230 slot for expanding WiFi/Bluetooth modules.

2. Complete Hardware Interface List

This embedded mainboard features comprehensively upgraded interfaces, with enhanced display, network and high-speed USB capabilities. It can connect almost all mainstream industrial peripherals without additional expansion cards:

1. Display Interfaces (Three Independent Display Outputs) Supports HDMI 2.0, eDP and LVDS displays with 3 independent display channels. Maximum resolution: HDMI 2.0 up to 4096×2160 (4K@60Hz), eDP up to 2560×1600, LVDS up to 1920×1200. It supports three-screen asynchronous/synchronous output, meeting the needs of multi-screen monitoring and machine vision applications.

2. Network Interfaces Onboard 3 channels of RTL8111H Gigabit Ethernet, one more network port than similar 3.5-inch industrial motherboards, enabling multi-network segment isolation, network redundancy and multi-link data transmission.

3. Serial Communication Interfaces Total 6 serial ports: 4 standard 3-wire RS232 ports, COM1 and COM2 are switchable to RS232/422/485, fully compatible with PLCs, sensors, instruments and other industrial serial devices.

4. USB Interfaces Total 8 USB ports: 4×USB2.0 + 4×USB3.0, doubling the number of high-speed USB ports, allowing simultaneous connection of industrial cameras, barcode scanners, high-speed USB drives and other peripherals.

5. Expansion Interfaces

• 1 mPCIe slot supporting 4G LTE wireless module expansion

• 1 M.2 E-key 2230 slot for expanding WiFi 5/6 or Bluetooth modules

• 8 programmable GPIO interfaces for controlling relays, indicators and switch devices

6. Audio Interface Equipped with ALC662 high-fidelity audio codec, providing Line-in, Line-out and Mic-in ports for voice broadcasting and audio collection needs.

3. Key Functions

1. Next-Generation Platform Computing Power Upgrade Based on the Intel Elkhart Lake 10nm architecture, this industrial motherboard delivers significantly improved performance compared to the previous Baytrail platform, supporting medium-complexity machine vision algorithms, edge computing tasks and multi-device linkage control.

2. Three-Screen 4K High-Definition Display Native support for 3 independent display outputs, with HDMI 2.0 enabling 4K high-definition images, ideal for multi-screen industrial human-machine interfaces (HMI), multi-channel monitoring and digital signage applications.

3. High-Speed Data Processing and Transmission DDR4 3200MHz large memory + SATA3.0 high-speed storage, combined with 4 USB3.0 interfaces and 3 Gigabit network ports, eliminate data transmission bottlenecks of older platforms and adapt to industrial cameras, high-speed sensors and other peripherals.

4. Multi-Network Port Industrial Communication The 3 Gigabit network ports can be used for equipment control, data upload and external network connection respectively, achieving internal and external network isolation and network redundancy, improving the reliability of industrial systems.

5. Flexible Wireless Expansion Equipped with both mPCIe and M.2 E-key dual expansion slots, allowing on-demand expansion of 4G, WiFi, Bluetooth and other wireless modules to meet different IoT connection requirements.

6. Native Compatibility with New Operating Systems Supports Windows 10/11 operating systems, solving the problem of discontinued support for older systems, and can run the latest industrial software, AI algorithms and cloud-edge collaborative applications, extending the service life of equipment.

7. Industrial-Grade Wide Temperature Operation Optional -40°C ~ +75°C wide temperature version, paired with industrial-grade components, supports 7×24 hours uninterrupted operation and adapts to complex industrial environments.

4. Application Scenarios

Combined with its hardware upgrade features, this embedded mainboard is suitable for industrial fields requiring higher computing power and new system support:

4.1 High-End Industrial Automation

• Control terminals for multi-axis CNC machine tools and high-end CNC machining centers

• High-precision machine vision inspection equipment and visual positioning systems

• Controllers for AGV/AMR robots and collaborative robotic arms

• Multi-screen industrial human-machine interfaces (HMI) and production line edge computing terminals

4.2 Smart Transportation and In-Vehicle Applications

• Multi-camera traffic signal controllers, road condition monitoring terminals and ETC gantry equipment

• Smart bus scheduling terminals and in-vehicle multimedia & monitoring all-in-one machines

• Driving test equipment and in-vehicle edge computing units

4.3 New Energy and Electric Power

• Mainboards for multi-gun smart charging piles and charging stack controllers

• Smart inverters for photovoltaic/wind power and energy storage system BMS controllers

• Power distribution automation terminals and substation intelligent monitoring equipment

4.4 IoT and Edge Computing

• Multi-protocol industrial gateways and multi-device data collectors

• Environmental monitoring stations (multi-sensor access) and weather station terminals

• Park edge computing nodes and smart building control terminals

4.5 Security and Commercial Terminals

• Multi-channel high-definition security NVRs and face recognition all-in-one machines (multi-display)

• 4K digital signage and self-service terminals (multi-peripheral access)

• Smart access control and visitor registration systems

4.6 Medical and Special Equipment

• Medical inspection and analysis instruments and medical imaging auxiliary equipment

• Medical self-service terminals and ward call systems

• The wide temperature version can be used for cold chain monitoring and outdoor cabinet equipment

5. Core Product Advantages

1. Generational Platform Upgrade with Excellent Performance-Energy Ratio Adopting Intel Elkhart Lake 10nm process processors, this industrial motherboard delivers 2-3 times higher CPU performance and more than 4 times higher GPU performance compared to the previous J1900 platform, while maintaining a low power consumption of 4.5W-12W, meeting medium computing power industrial needs with energy efficiency.

2. Industry-Leading Three-Screen 4K Display A rare three independent display output design among similar 3.5-inch embedded mainboards, with HDMI 2.0 natively supporting 4K@60Hz. It can drive a display screen, monitor and operation panel simultaneously, significantly improving human-computer interaction efficiency.

3. Fully High-Speed Memory and Interfaces Up to 16GB DDR4 3200MHz memory + SATA3.0 high-speed storage, paired with 4 USB3.0 interfaces and 3 Gigabit network ports, solve the data transmission bottlenecks of older platforms and adapt to high-speed peripherals such as industrial cameras.

4. Upgraded System Compatibility with Longer Lifecycle Native support for Windows 10/11 operating systems, avoiding security risks caused by discontinued maintenance of older systems. It can run the latest industrial software and AI applications, extending the service life of equipment by 5-7 years.

5. Flexible Expansion Capabilities for Diverse Needs Equipped with both mPCIe and M.2 E-key dual expansion slots, supporting expansion of 4G, WiFi, Bluetooth and other wireless modules to meet wired + wireless multi-connection scenarios.

6. Industrial-Grade Reliability for Complex Environments Adopting industrial-grade components, supporting wide voltage input and optional wide temperature operation, and passing strict shock and high/low temperature tests to ensure 7×24 hours stable operation.

7. Standard Form Factor with Low Upgrade Cost Following the standard 3.5-inch industrial board form factor, it is compatible with existing 3.5-inch industrial PC chassis and installation structures. Upgrading old equipment does not require redesigning the structure, reducing modification costs by more than 60%.

6. Target Customers

Combined with product positioning and upgrade features, this industrial motherboard targets five major customer groups:

6.1 High-End Industrial Equipment Manufacturers (Core Customers)

• Manufacturers of industrial robots, multi-axis CNC machine tools and high-end machine vision equipment

• Manufacturers of multi-screen industrial tablet PCs and embedded industrial PCs

• R&D enterprises of production line automation equipment and edge computing terminals

6.2 New Energy and Smart Transportation Equipment Manufacturers

• Manufacturers of smart charging piles (multi-gun, fast-charging type) and energy storage system equipment

• Manufacturers of smart in-vehicle terminals and multi-camera traffic monitoring equipment

• Manufacturers of smart grid and power distribution automation equipment

6.3 IoT and System Integrators

• Integrators of industrial gateways, edge computing nodes and multi-protocol data collectors

• Solution providers for smart cities, smart parks and environmental monitoring systems

• Integrators of security monitoring and face recognition systems

6.4 Medical and Commercial Equipment Manufacturers

• Manufacturers of medical inspection and analysis instruments and medical self-service terminal equipment

• Manufacturers of 4K digital signage, self-service terminals and commercial all-in-one machines

6.5 Traditional Industrial Equipment Upgrade Customers

• Customers who need to upgrade the computing power and system of original J1900/E38xx platform equipment

• Industrial equipment manufacturers who need to replace old motherboards to support Windows 10/11

• Embedded equipment developers with requirements for multi-display and high-speed interfaces

YDS TECH PCM-E352 3.5-inch wide temperature x86 industrial motherboard, with core strengths of generational performance upgrade, three-screen 4K display, high-speed data transmission and long system lifecycle, covers multiple global industries including industrial automation, smart transportation, new energy, Internet of Things, security and medical. As a professional wide temperature industrial PC manufacturer and 3.5-inch industrial motherboard supplier, we provide ODM/OEM customization services to meet the differentiated hardware needs of customers worldwide. Official Website: www.ydstech.com  Contact Person: Mr. Stan Wong  Email: stan@ydstech.com
