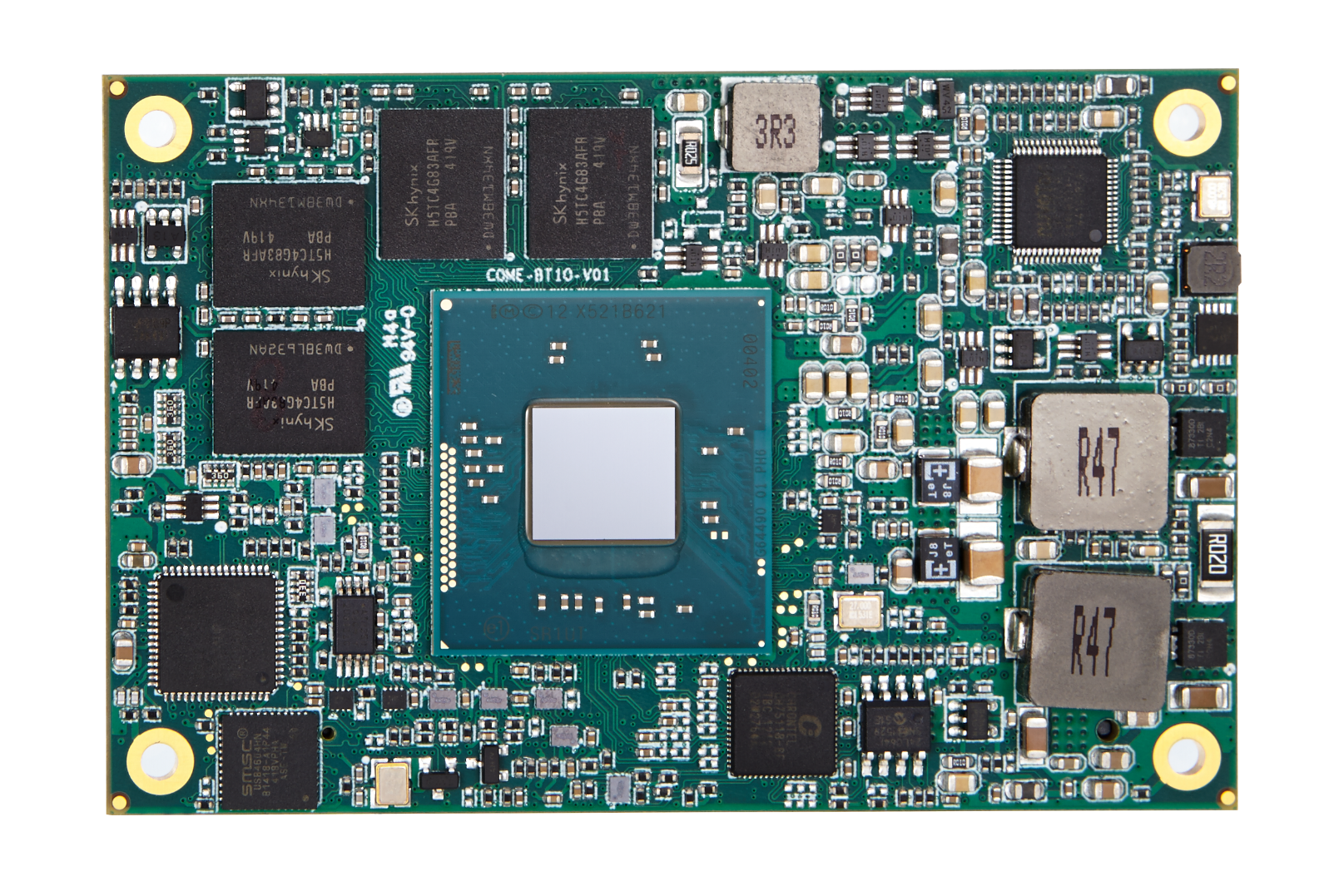

COM Express® mini Type 10
with Intel® Atom™ E3800 & Celeron® Series
| Quantity: | |
|---|---|
COME-BT10
YDS
Alder Lake
DDR3
SATA
NO
1x USB 3.0 (incl. USB 2.0), 3x USB 2.0 from CPU, 4x USB 2.0 from HSIC Hub
84 x 55 mm
Operating-20°C to +75°C ,-40°C to +85°C
WIN7, WIN10, Linux
COME-BT10 COM Express® mini Type 10
with Intel® Atom™ E3800 & Celeron® Series
»Intel® Atom™ E3800 & Celeron® Series
»Up to 8GB DDR3L memory down
»High resolution Intel® Gen. 7 graphics
»Up to 8x USB 2.0, 1x USB 3.0, eMMC Flash, 2x SATA, SD-Card
»Temperature operating from -25°C to +75°C
»Temperature operating from -40°C to +85°C (optional)
Technical Information | ||
Compliance | COM Express® mini, Pin-out Type 10 | |
CPU | Intel® Atom™ E3845, Intel® Atom™ E3827, Intel® Atom™ E3826, Intel® Atom™ E3825, Intel® Atom™ E3815, | |
Memory | Up to 8GB DDR3L-1333 memory down | |
Graphics Controller | Intel® HD Graphics (Gen7) | |
Ethernet | Intel® I210IT Gigabit Ethernet | |
Hard Disk | 2x SATA 3Gb/s | |
Flash Onboard | 4 - 128GB eMMC | |
PCI Express® / PCI support | 3x PCIe x1 | |
Panel signal | DDI: DP++, LVDS: Single Channel 18/24bit or eDP | |
USB | 1x USB 3.0 (incl. USB 2.0), 3x USB 2.0 from CPU, 4x USB 2.0 from HSIC Hub | |
Serial | 2x serial interface (RX/TX only) | |
Audio | Intel® High Definition Audio | |
Common Features | SPI, LPC, SMB, Fast I²C, Staged Watchdog, RTC | |
Options | 1x PCIe x1 additional w/o onboard LAN, eMMC Flash onboard (4-128GB), eDP instead of LVDS, | |
Power Supply | 12V, Single Supply Power | |
Special Features | GPIO/SDIO Switch, General Purpose SPI optional | |
Operating System | Windows® 7, Windows® 10 , Linux | |
Temperature | Operating-20°C to +75°C ,-40°C to +85°C | |
Dimensions (H x W x D) | 84 x 55 mm | |
Ordering Information | |||
Article | Description | ||
COME-BT10-A10-XY | Operating-20°C to +65°C,4GB DDR3L-1333 memory | ||
COME-BT10-A11-XY | Operating-20°C to +65°C,4GB DDR3L-1333 memory | ||
COME-BT10W-A10-XY | Operating-40°C to +85°C,8GB DDR3L-1333 memory | ||
COME-BT10W-A11-XY | Operating-40°C to +85°C,8GB DDR3L-1333 memory | ||
Note: X（CPU）: E3845,E3827,E3826,E3825,E3815,,J1900,N2920,N2930,N2807 | |||
