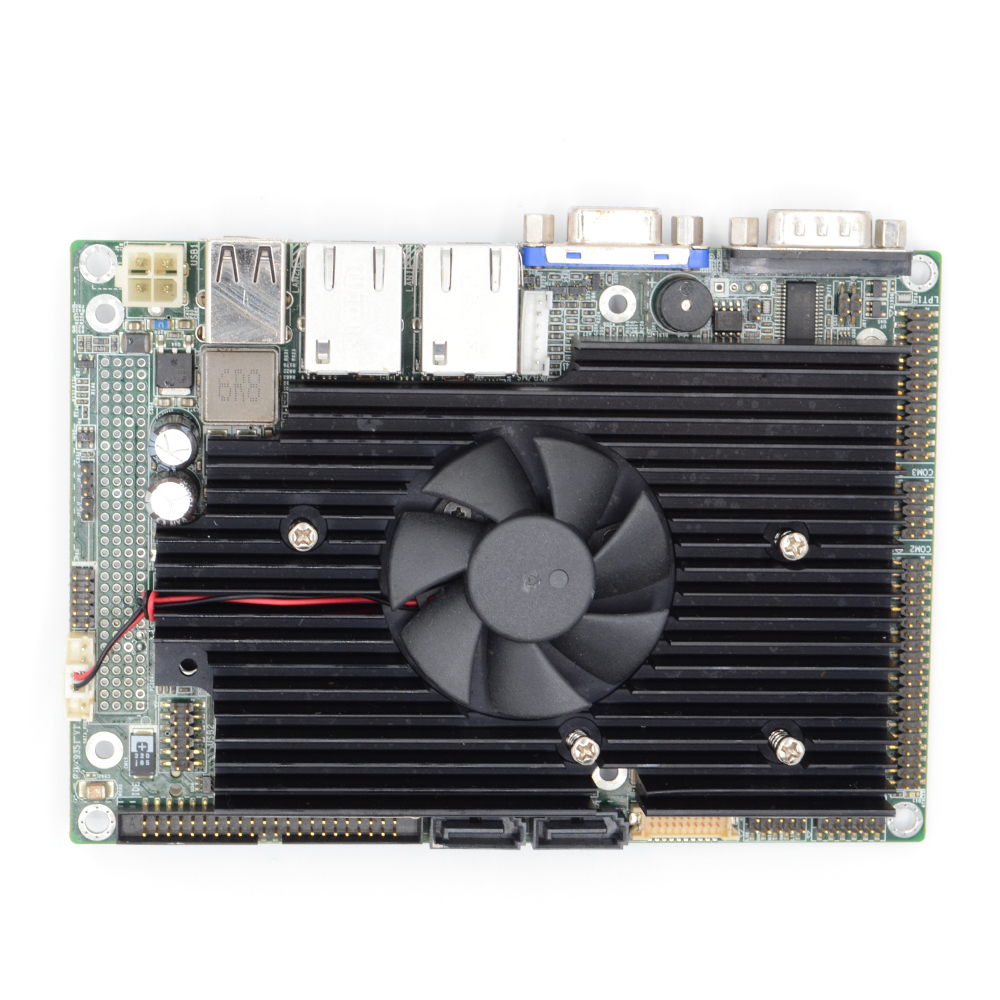

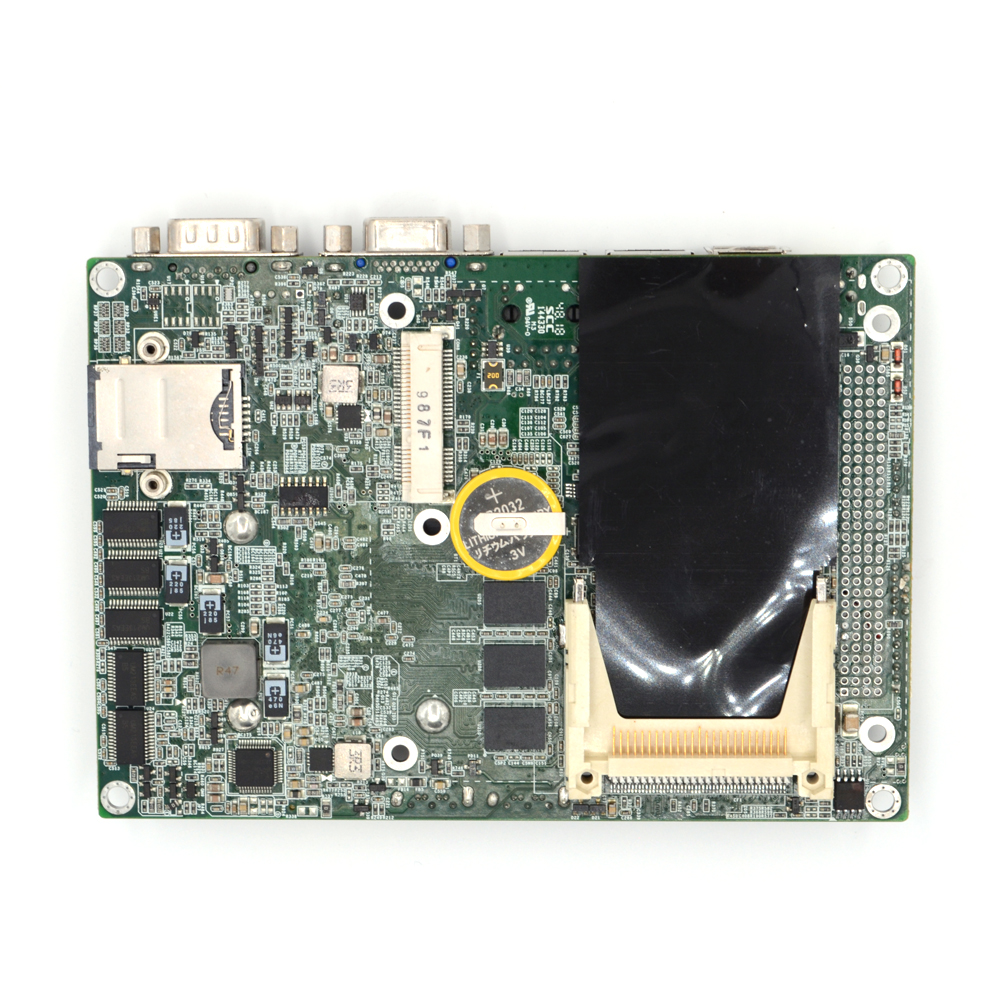

PCM-9351B
YDS
Pineview
VGA, LVDS
DDR3
SATA
YES
Supports 4G
Fan, Fanless
232
Support 6 USB2.0
102mm x 147 mm
Operating temperature -20°C to +75°C , (-40°C to +85°C optional )
WINXP, WIN7, Linux, WES7, VxWorks, XPE
PCM-9351B Block Diagram
Technical Information | ||
Plate type | 3.5 inch motherboard | |
Processor | Intel® Atom ™ Pineview Processor _ support: Intel® Atom ™ Pineview N455 1.66GHz single core Intel ® Atom ™ Pineview D525 1.8GHz Dual Core | |
| Chipset | Intel ® ICH8M | |
Memory | Support 2GB onboard DDR3 memory , frequency: 667MH z | |
Graphics processing | Integrated INTEL GMA3150 graphics card (DirectX 9), shares video memory with VGA display, supports 18-bit single-channel LVDS | |
| Network card | Supports 2 RJ45 ( 10/100/1000 Mb/s Ethernet ) | |
| Storage | Supports 2 SATA, 1 PATA44 and 1 C | |
USB | Support 6 USB2.0 | |
Serial port | Support 6 RS232 (9 lines) | |
Parallel port | Support 1 LPT | |
| I/O | Supports 1 mPCIe , 1 PC104+ and 1 SIM | |
Sound card | ALC662 high-fidelity sound card (Line-in, Line-out, Mic-in) | |
Power supply | +9V~+36V voltage , + 12V is recommended | |
Temperature | Operating temperature -20°C to +75°C , (-40°C to + 85 °C optional ) | |
Size | 102mm x 147mm | |
Cooling system | The optional N455 chip is fanless ; the optional D525 chip requires an additional fan. | |
Operating system | Winxp,XPE,Win7,WES7,Linux,VxWorks | |
Ordering Information | |||
Model | Describe | ||
PCM-9351B-A10-X | Design with fan | ||
PCM-9351B-A11 | Intel Atom N455 1.66G Fanless design | ||
PCM-9351BW-A11 | Intel Atom N455 1.66G Fanless design Temperature :-40°C to +85°C | ||
Note: X represents CPU model , CPU includes : N455, D525 | |||
