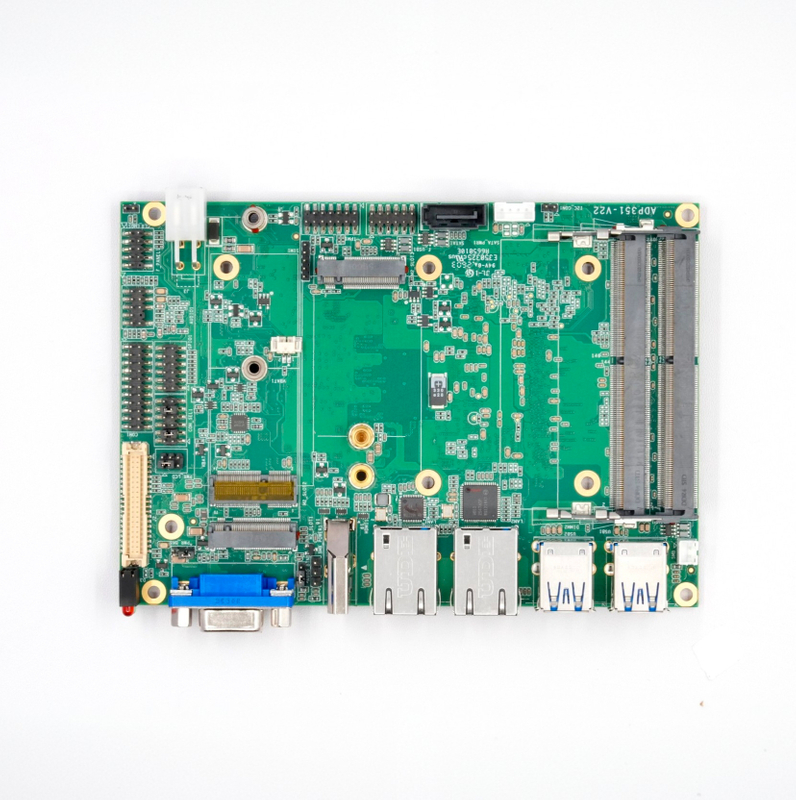

PCM-ADP351
YDS
Intel Alder Lake, Intel Raptor Lake-P
VGA, HDMI, EDP, LVDS
DDR4
SATA, M.2
YES
Supports 4G, Supports WIFI
Fan
232, 422, 485
Supports 4 front-panel USB 3.0/2.0 ports and 4 internal USB 2.0 ports.
146 mm x 102 mm
Operating temperature : -20°C to + 60 °C (optional: -40°C to + 75 °C)
WIN10, WIN11, Linux
PCM-ADP351 Block Diagram
Technical Information | ||
Plate type | 3.5 inch motherboard | |
Processor | Intel Core i3- 1215U,2C+4A,up to 4.4 GHz (P-Core) 3.3 GHz (E-Core),15W-55W Intel Core i3-1215UE,2C+4A,up to 4.4GHz(P-Core) 3.3GHz(E-Core),15W-55W Intel Core i3- 1220P,2C+8A,up to 4.4 GHz (P-Core) 3.3 GHz (E-Core), 28W-64W Intel Core i 5-1235U , 2C +8A,up to 4.4 GHz (P-Core) 3.3 GHz (E-Core),15W-55W Intel Core i 5 - 1240P,4C+8A,up to 4.4 GHz (P-Core) 3.3 GHz (E-Core), 28W-64W Intel Core i5-1245UE,2C+8A,up to 4.4GHz(P-Core) 3.3GHz(E-Core),15W-55W Intel Core i 7-1255U , 2C +8A,up to 4.7 GHz (P-Core) 3.5 GHz (E-Core),15W-55W Intel Core i 7-1260P , 4C +8A,up to 4.7 GHz (P-Core) 3.4 GHz (E-Core), 28W-64W Intel Core i 7-1265U , 2C +8A,up to 4.8 GHz (P-Core) 3.6 GHz (E-Core),15W-55W Intel Core i7-1265UE,2C+8A,up to 4.7GHz(P-Core) 3.5GHz(E-Core),15W-55W Intel Core i3-1315U,2C+4A,up to 4. 5 GHz(P-Core) 3.3GHz(E-Core),15W-55W Intel Core i5-1335U,2C+8A,up to 4. 6 GHz(P-Core) 3. 4 GHz(E-Core),15W-55W Intel Core i3-1315UE,2C+4A,up to 4.5GHz(P-Core) 3.3GHz(E-Core),15W-55W Intel Core i5-1335UE,2C+8A,up to 4.5GHz(P-Core) 3.3GHz(E-Core),15W-55W Intel Core i 7 -13 5 5U,2C+8A,up to 5. 0 GHz(P-Core) 3. 7 GHz (E-Core),15W-55W Intel Core i7-1365UE,2C+8A,up to 4.9GHz(P-Core) 3.7GHz(E-Core),15W-55W | |
Memory | Two dual-channel SO-DIMM DDR4 memory modules, maximum 64GB, frequency 2133/2666/ 3200MHz | |
Graphics processing | Supports one HDMI port with a maximum resolution of 3840x2160 @ 60 Hz , and one VGA port with a maximum resolution of 1920x1080 @ 60 Hz. Supports one 18/24- bit single-channel or dual-channel LVDS, with a maximum resolution of 1920x1080 @60Hz , or EDP. | |
Network card | Supports two Intel 10/100/1000Mbit Ethernet ports ( Intel® I21 9V and I211AT/I210AT) | |
Storage | Supports one SATA 3.0 interface and one M.2 SSD ( M-Key 2280 SSD NVMe ). | |
mPCIe | Supports one M.2 WIFI port ( E-Key 2230 PCIe x1 & USB 2.0 ) Supports one M.2 4G/5G port ( B-Key 3042/3052 PCIe x1 & USB2.0 ) | |
USB | Supports 4 front-panel USB 3.0/2.0 ports and 4 internal USB 2.0 ports. | |
Serial port | Supports 6 RS232 (3-wire) ports, with COM1 and COM2 selectable between RS232/422/485. | |
IO | Supports 8 GPIOs, 1 SIM card slot (optional), and 1 TPM socket. | |
Sound card | ALC662/897 High-Fidelity Sound Card ( Line-in, Line-out, Mic-in ) | |
Power supply | +12V~+ 19V , + 12V is recommended. | |
Temperature | Operating temperature : -20°C to + 60 °C (optional: -40°C to + 75 °C) | |
Size | 146 mm x 102 mm | |
Cooling system | Fan cooling | |
Operating system | Win10, Win11, Linux | |
