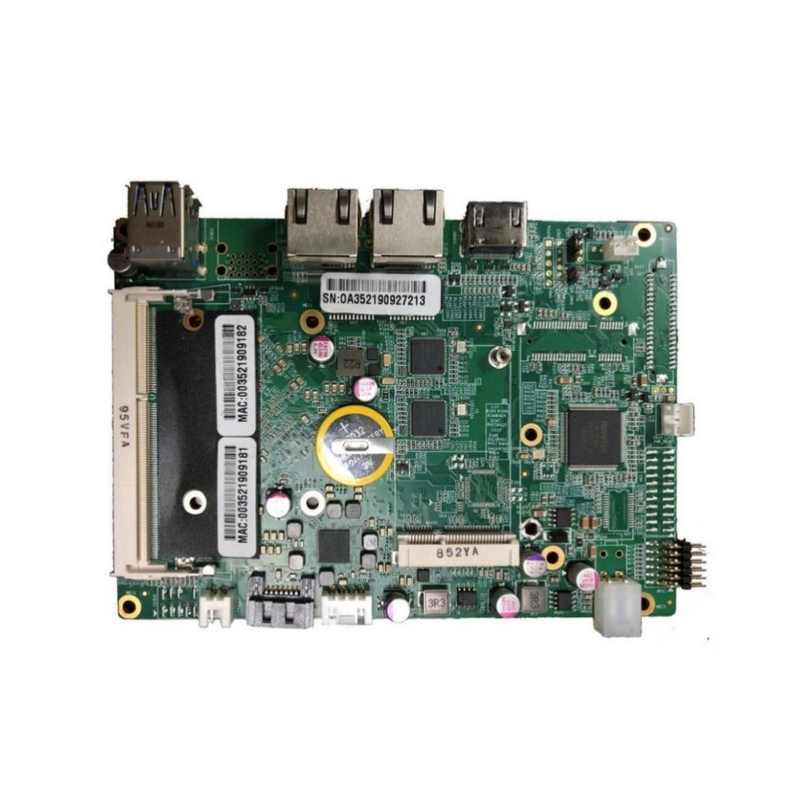

PCM-A352
YDS
Intel Apollo Lake
HDMI, EDP, LVDS
DDR3
SATA, M SATA
YES
Supports 4G
Fanless
232, 422, 485
Supports 4 USB 3.0/2.0 ports (optional, 2 by default).
146 mm x 101 mm
Operating temperature: -20°C to + 60 °C (-40°C to + 75 °C is optional)
WIN10, Linux, VxWorks
PCM-A352 Block Diagram
Technical Information | ||
Plate type | 3.5 inch motherboard | |
Processor | Intel® Apollo Lake-M J3x55/N series SOCs (dual-core or quad-core, TDP: 6-10W) support: Intel® Apollo J3355 Dual-core 2.0GHz 10W Intel® Apollo J3455 Quad-core 1.5GHz 10W Intel® Apollo J4205 Quad-core 1.5GHz 10W Intel® Apollo N3350 Dual-core 1.1GHz 6W Intel® Apollo N3450 Quad-core 1.1GHz 6W Intel® Apollo N4200 Quad-core 1.1GHz 6W etc. | |
Memory | SO-DIMM DDR3L memory (1.35V, supports up to 8GB) with a maximum frequency of 1866MHz or 1333MHz. | |
Graphics processing | Supports eDP (maximum resolution 2560x1600) or LVDS (maximum resolution 1920x1200) (optional) Supports HDMI 1.4a (maximum resolution 1920x1200) | |
Network card | Supports 2 Intel I211AT or Intel I210AT 10/100/1000 Mb/s Ethernet | |
SATA | Supports one mSATA and one SATA 3.0 port. | |
USB | Supports 4 USB 3.0/2.0 ports (optional, 2 by default). | |
Serial port | Supports 6 RS232 (3-wire) ports, 2 of which are optional RS232/422/485. | |
IO | Supports 1 mPCIe, 8 GPIO interfaces, and 1 SIM card slot (expandable). | |
Sound card | ALC662 High-Fidelity Sound Card (Line-in, Line-out, Mic-in) (Optional) | |
Power supply | + 12V to + 19V voltage, +12V is recommended. | |
Temperature | Operating temperature: -20°C to + 60 °C (-40°C to + 75 °C is optional) | |
Size | 146 mm x 101 mm | |
Cooling system | Fanless design | |
Operating system | Win10, Linux, VxWorks | |
Ordering Information | |||
model | describe | ||
PCM-A351-A10-X | Display: HDMI | ||
PCM-A351-A11-X | show: HDMI + LVDS/Edp | ||
PCM-A351W-A10-X | Display: HDMI Temperature:-40°C to +85°C | ||
PCM-A351W-A11-X | Display: HDMI + LVDS/Edp Temperature:-40°C to +85°C | ||
Note: X represents the CPU model, CPU includes: J3355, J3455, J4205, N3350, N3450, N4200 | |||
