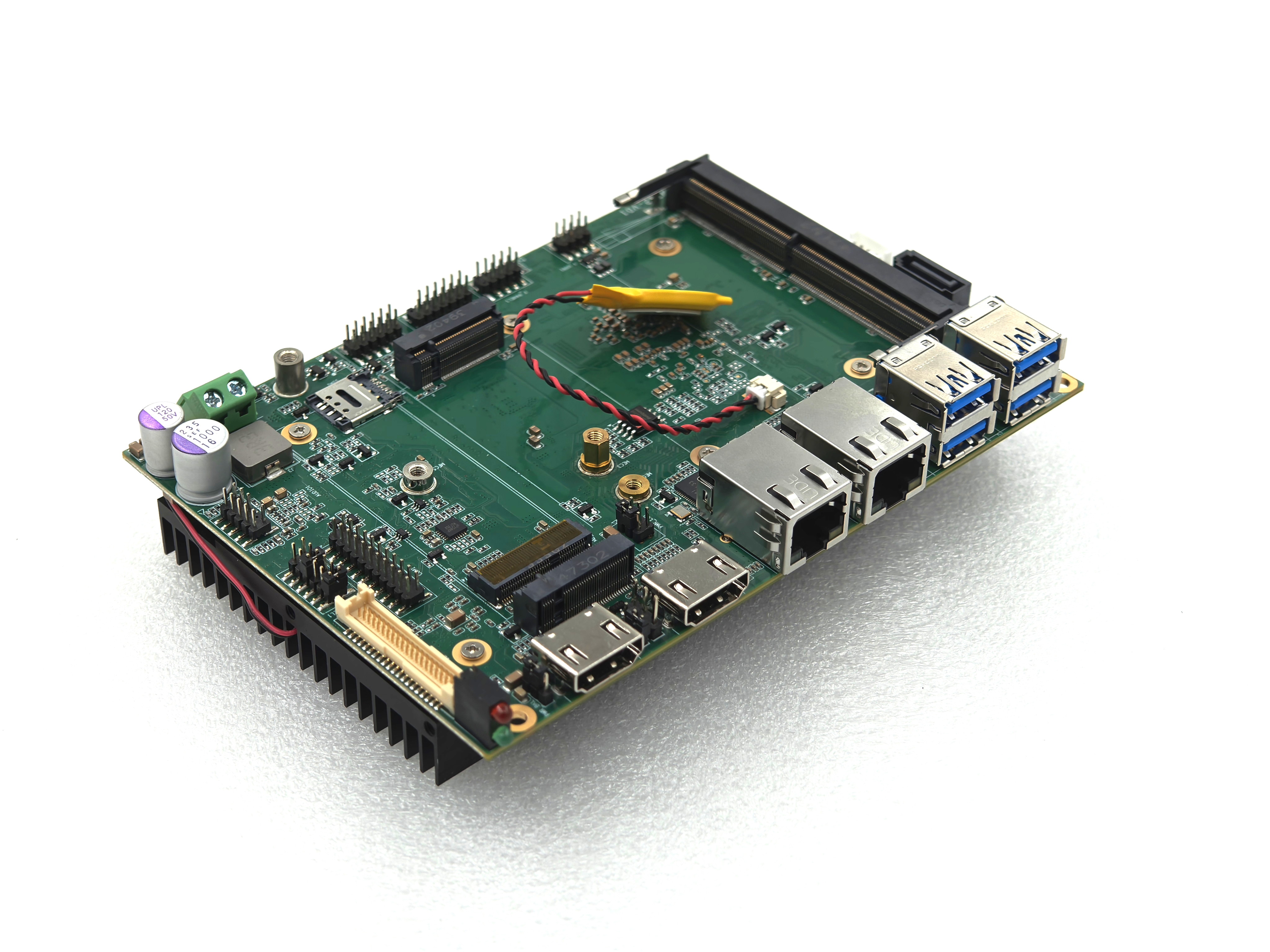

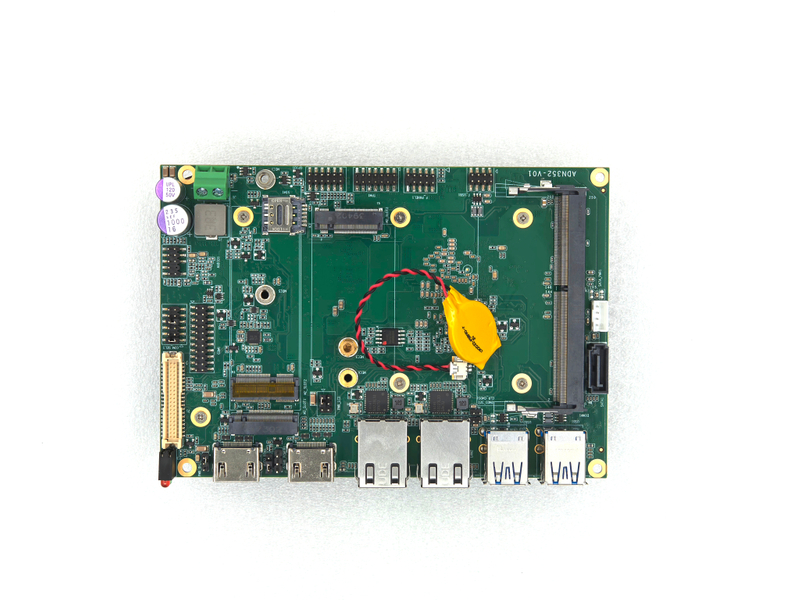

PCM-ADN352
YDS
Intel Alder Lake, Intel Amston Lake, Intel Twin Lake
HDMI, EDP, LVDS
DDR4
SATA, M.2
YES
Supports 4G, Supports WIFI
Fan
232, 422, 485
Supports 4 front-panel USB 3.0/2.0 ports and 2 internal USB 2.0 ports.
146 mm x 102 mm
Operating temperature : -20°C to + 60 °C (optional: -40°C to + 75 °C)
WIN10, WIN11, Linux

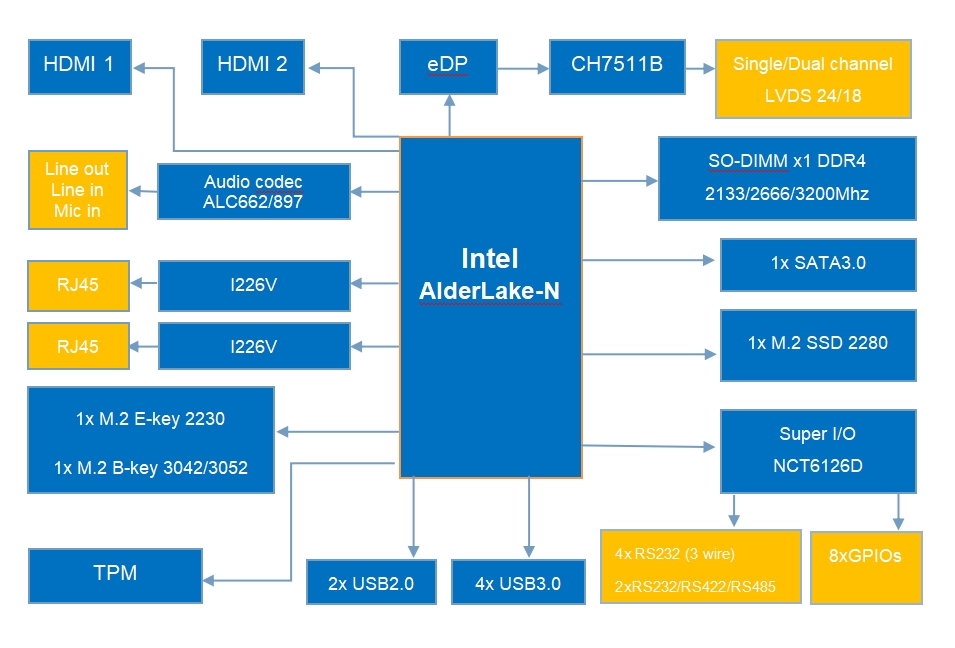

PCM-ADN352 Block Diagram
Technical Information | ||
Plate type | 3.5 inch motherboard | |
Processor | Supports Intel Alder Lake-N / Twin Lake / Amston Lake series, including: Intel N95, 4C4T, up to 3.4 GHz 16 EU iGPU TDP: 15W Intel N97, 4C4T, up to 3.6 GHz 24 EU iGPU TDP: 12W Intel N100, 4C4T, up to 3.4 GHz 24 EU iGPU , TDP: 6W Intel N200, 4C4T, up to 3.7 GHz , 32 EU iGPU , TDP: 6W Intel Core i3 N300, 8C8T, up to 3.8 GHz , 32 EU iGPU , TDP: 7W Intel Core i3 N305, 8C8T, up to 3.8 GHz , 32 EU iGPU , TDP: 15W Intel Atom X7425E, 4 cores and 4 processors, up to 3.4 GHz , 24 EU iGPU , TDP: 12W Intel N150, 4C4T, up to 3.6 GHz 24 EU iGPU , TDP: 6W Intel N250, 4C4T, up to 3.8 GHz , 32 EU iGPU , TDP: 6W Intel Core i3 N350, 8C8T, up to 3.9 GHz , 32 EU iGPU , TDP: 7W Intel Core i3 N355, 8C8T, up to 3.9 GHz , 32 EU iGPU , TDP: 15W Intel Atom X7211RE,2C2T, up to 3.2 GHz , 16 EU iGPU , TDP: 6W Intel Atom X7213RE,2C2T, up to 3.4 GHz , 16 EU iGPU , TDP: 9W Intel Atom X7433RE,4C4T, up to 3.4 GHz , 32 EU iGPU , TDP: 9W Intel Atom X7835RE,8C8T, up to 3.6 GHz , 32 EU iGPU , TDP: 12W | |
Memory | Supports one SO-DIMM DDR4 memory module, up to 32GB, with frequencies of 2133/2666/3200MHz . | |
Graphics processing | Supports two HDMI ports with a maximum resolution of 3840x2160 @ 60 Hz ; Supports one 18/24- bit single-channel or dual-channel LVDS/EDP, with a maximum resolution of 1920x1080 @60Hz. | |
Network card | Supports two 10/100/1000/2500 Mbit Ethernet ports (I226V). | |
Storage | Supports one SATA 3.0 interface and one M.2 SSD ( M-Key 2280 SSD NVMe /NGFF ). | |
mPCIe | Supports one M.2 WIFI port ( E-Key 2230 PCIe x1 & USB2.0 ) Supports one M.2 4G/5G port ( B-Key 3042/3052 USB2.0 ) | |
USB | Supports 4 front-panel USB 3.0/2.0 ports and 2 internal USB 2.0 ports. | |
Serial port | Supports 6 RS232 (3-wire) ports, with COM1 and COM2 selectable between RS232/422/485. | |
IO | Supports 8 GPIOs, 1 SIM card slot, and 1 TPM socket. | |
Sound card | ALC662/ALC897 High-Fidelity Sound Card ( Line-in, Line-out, Mic -in ) | |
Power supply | +9V~+36V , + 12V is recommended. | |
Temperature | Operating temperature : -20°C to + 60 °C (optional: -40°C to + 75 °C) | |
Size | 146 mm x 102 mm | |

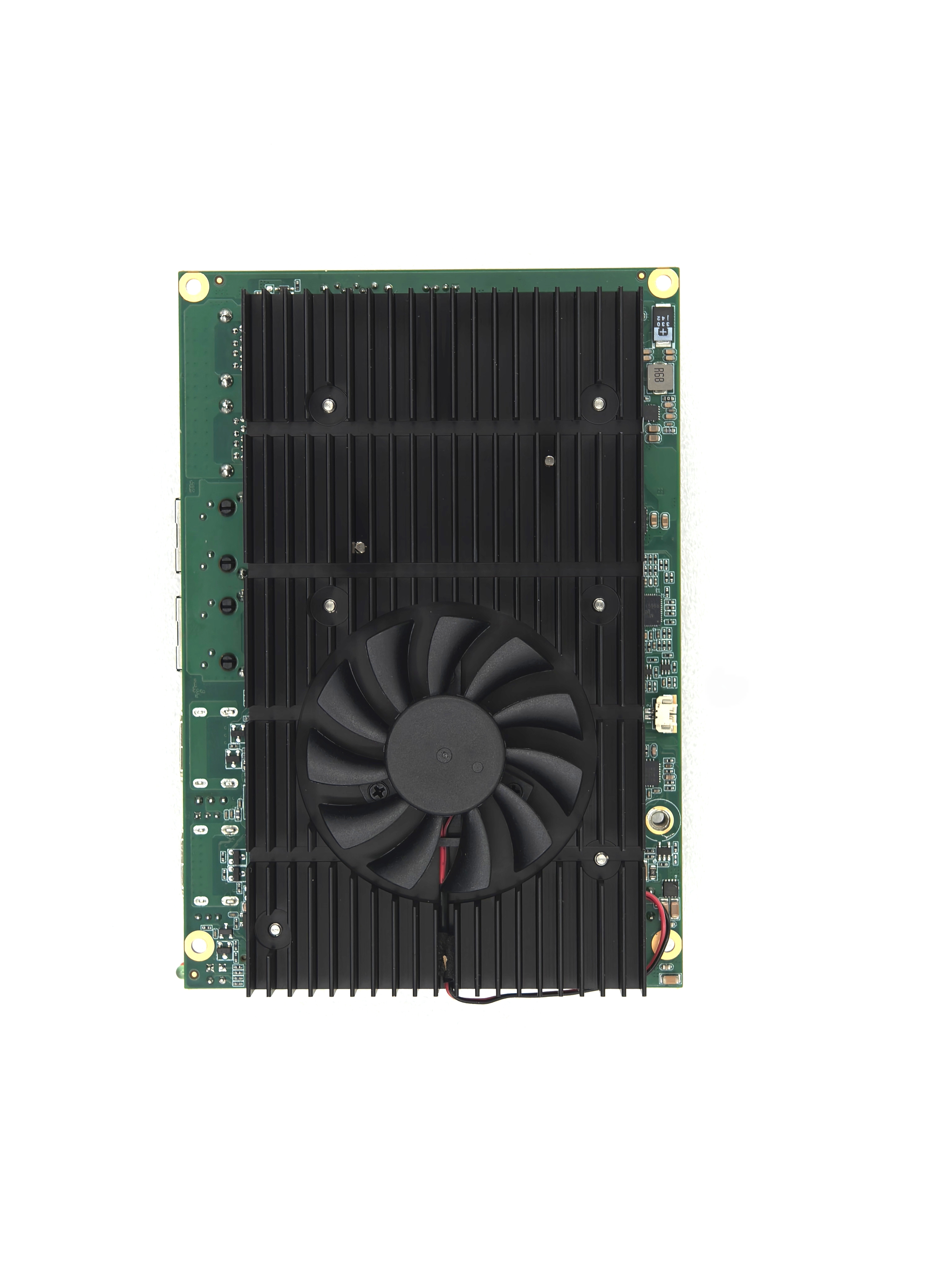

Cooling system | Fan cooling | |
Operating system | Win10, Win11, Linux | |
