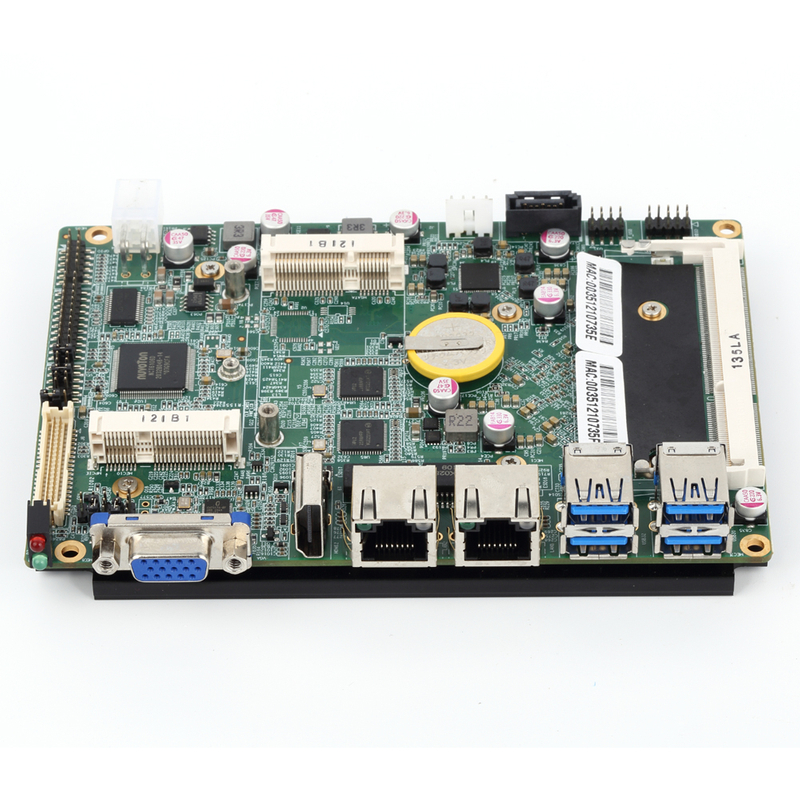

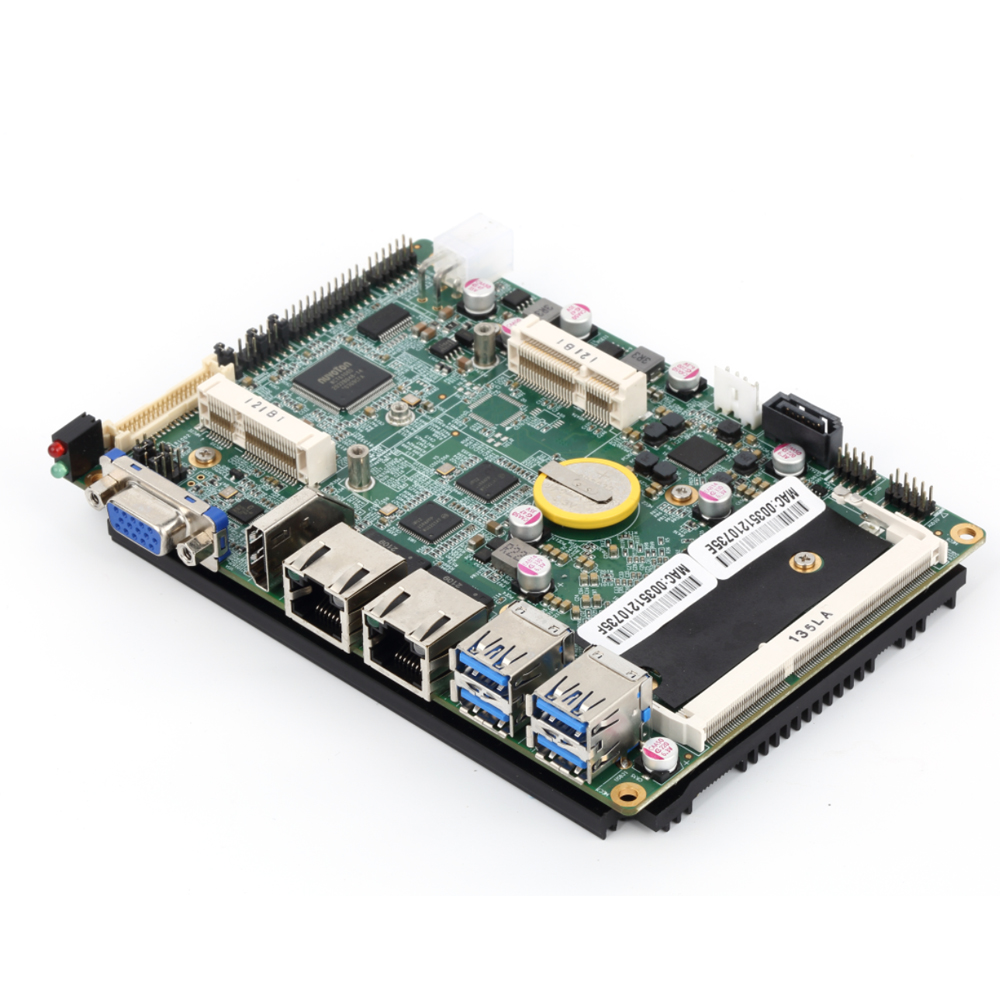

PCM-A351
YDS
Intel Apollo Lake
VGA, HDMI, EDP, LVDS
DDR3
SATA, M SATA
YES
Supports 4G
Fanless
232, 422, 485
Supports 2 USB 2.0 ports and 4 USB 3.0 / 2.0 ports (4 front-facing and 2 internal ).
146 mm x 101 mm
Operating temperature: -20°C to + 60 °C ( optional: -40°C to + 75 °C)
WIN10, Linux
PCM-A351 Block Diagram
Technical Information | ||
Plate type | 3.5 inch motherboard | |
Processor | Intel® A pollo Lake- M J 3x 55/N series SOC ( dual-core or quad-core) , power consumption: 6-10W support: Intel® A pollo J3355 dual - core 2.0 GHz 10 W Intel® A pollo J3455 Quad-core 1.5 GHz 10 W Intel® A pollo J4205 Quad-core 1.5 GHz 10 W Intel® A pollo N3350 Dual - core 1.1 GHz 6W Intel® A pollo N3450 Quad-core 1. 1 GHz 6 W Intel® A pollo N4200 Quad-core 1. 1 GHz 6 W | |
Memory | SO-DIMM DDR3L memory (1.35V, supports up to 8GB ) with a maximum frequency of 1866MHz | |
Graphics processing | Three independent display outputs , supporting eDP (maximum resolution 1920 x 1080 ) or LVDS (maximum resolution 1920 x 1080 ) , HDMI 1.4a ( maximum resolution 1920 x 1080 ) , and VGA (maximum resolution 1920 x 1080) . | |
Network card | Supports two Intel I211AT or Intel I210AT 10/100/1000 Mb/s Ethernet ports. | |
SATA | Supports one mSATA and one SATA 3.0 port . | |
USB | Supports 2 USB 2.0 ports and 4 USB 3.0 / 2.0 ports (4 front-facing and 2 internal ). | |
Serial port | Supports 6 RS232 ports (3-wire), COM1 and COM2 can be selected from RS232/422/485. | |
IO | Supports 1 mPCIe, 8 GPIO interfaces, and 1 SIM card slot (expandable). | |
Sound card | ALC662 High-Fidelity Sound Card (Line-in, Line-out, Mic -in) | |
Power supply | +12V~+ 19V , + 12V is recommended. | |
Temperature | Operating temperature: -20°C to + 60 °C ( optional: -40°C to + 75 °C) | |
Size | 146 mm x 101 mm | |

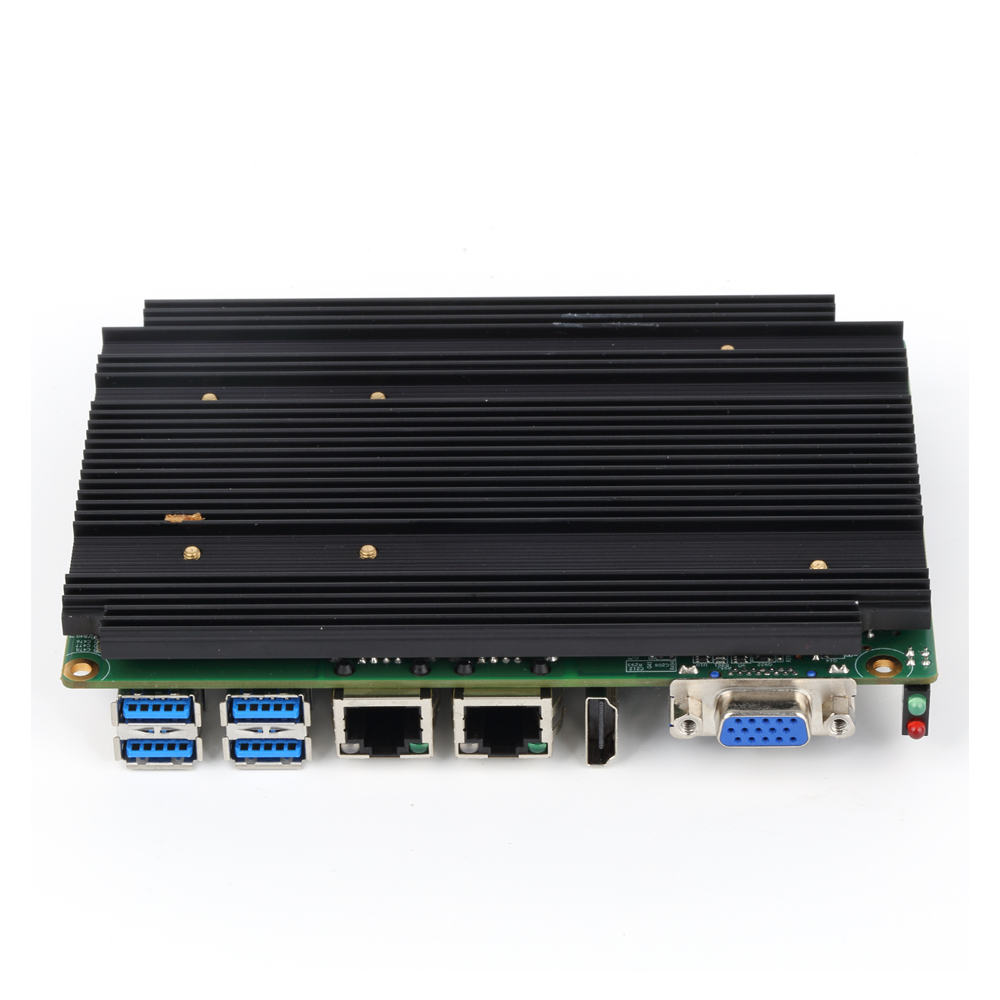

Cooling system | Fanless design _ | |
Operating system | Win10 , Linux | |
Ordering Information | |||
model | describe | ||
PCM-A351-A10-X | Display : LVDS + HDMI+ VGA | ||
PCM-A351-A11-X | Display : Edp +HDMI+ VGA | ||
PCM-A351W-A10-X | Display : LVDS + HDMI+ VGA Temperature :-40°C to + 75 °C | ||
PCM-A351W-A11-X | Display : Edp +HDMI+ VGA Temperature :-40°C to + 75 °C | ||
Note: X represents CPU model , CPU includes : J3355 , J3455 , J4205, N3350, N3450, N4200 | |||
