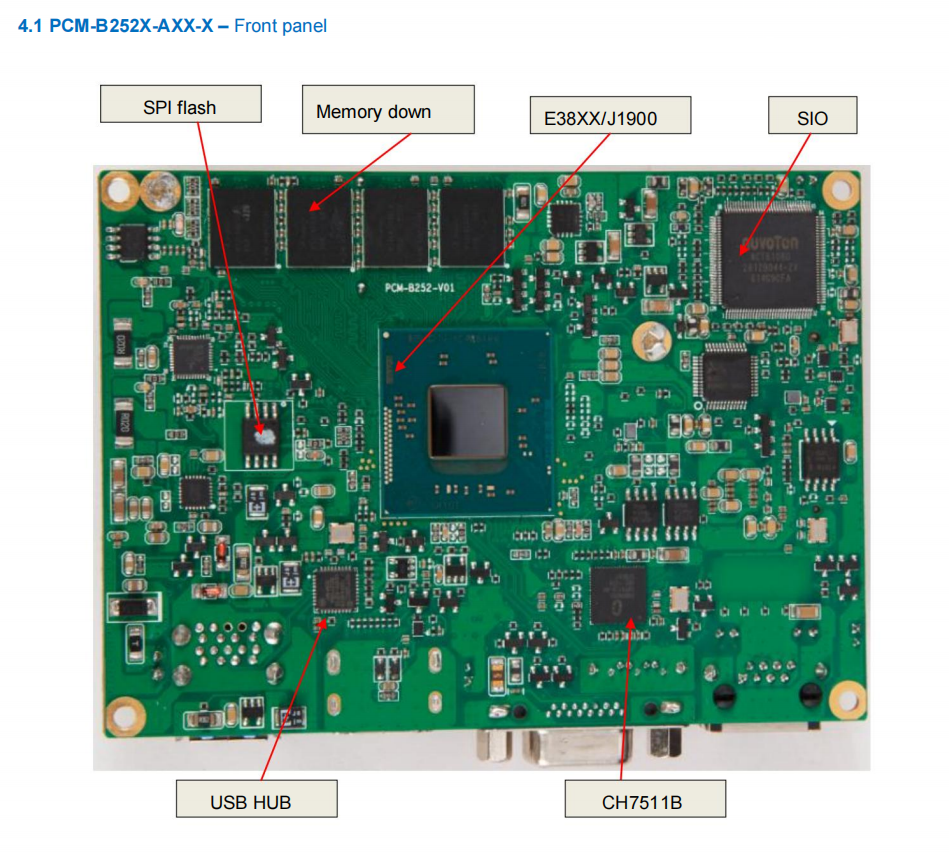

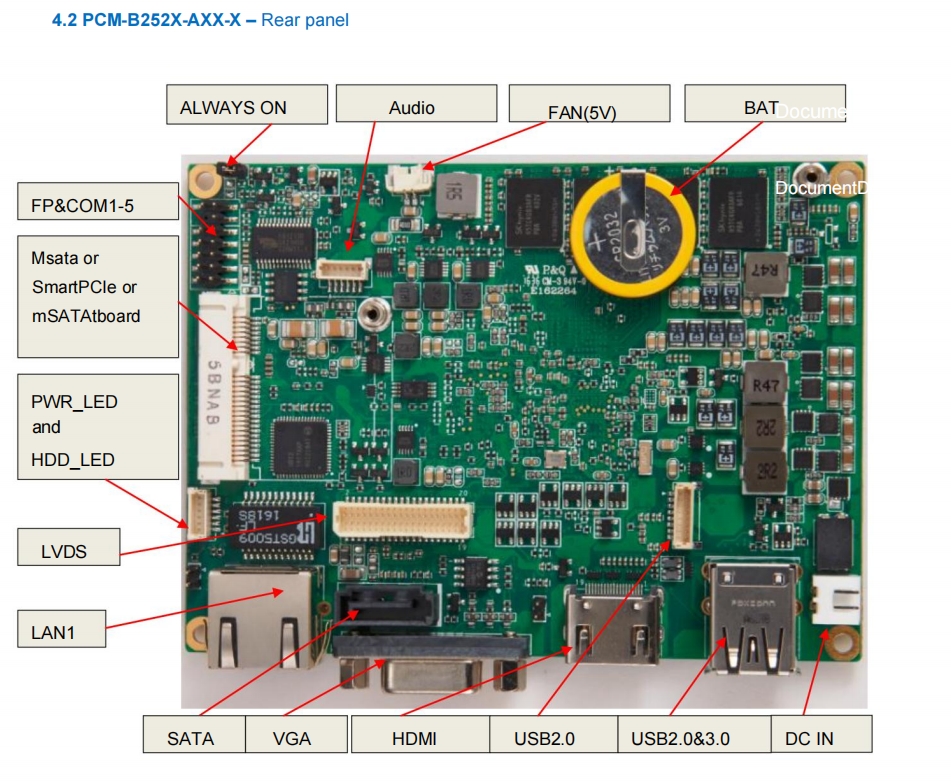

PCM-B252
YDS
Pineview
VGA HDMI LVDS
DDR3
M SATA
YES
Fanless
232 485
Supports 2 USB 2.0 (internal); 1 USB 3.0 (front); 1 USB 2.0 (front)
110mm x 82mm
Operating temperature -20°C to +75°C, (-40°C to +85°C optional)
WIN7 WIN10 Linux
PCM-B252 Block Diagram
Technical Information | ||
Plate type | 2.5 inch motherboard | |
Processor | Intel® Atom™ E38xx/j1900 series SOC (single, dual or quad core), power consumption: 5-10W) Support: Intel® Atom™ E3805 Single-Core 1.33GHz 3W Intel® Atom™ E3815 Single-Core 1.46GHz 5W Intel® Atom™ E3825 Dual-Core 1.33GHz 6W Intel® Atom™ E3826 Dual-Core 1.46GHz 7W Intel® Atom™ E3827 Dual-Core 1.75GHz 8W Intel® Atom™ E3845 Quad-Core 1.91GHz 10W Intel® Atom™ J1900 Quad-Core 2.0GHz 10W Intel® Atom™ N2807 Dual-Core 1.58GHz 4.3W | |
Memory | 4GB on-board DDR3L memory (1.35V) max frequency 1333MHz | |
Graphics processing | 3 display output interfaces: LVDS (maximum resolution of 1900x1200); HDMI 1.4a (front, the highest resolution of 1920x1200); VGA (front, the highest resolution of 1920x1080), support for simultaneous 2-way asynchronous display | |
Network card | Supports 1 RJ45 (10/100/1000 Mb/s), integrated Intel I211AT/I210AT Ethernet card | |
SATA | Supports 1 mSATA or expansion of 1 Smartboard (supports 1 mSATA, 1 NGFF, 1 SATA) | |
USB | Supports 2 USB 2.0 (internal); 1 USB 3.0 (front); 1 USB 2.0 (front) | |
Serial port | Supports 2 USB 2.0 (internal); 1 USB 3.0 (front); 1 USB 2.0 (front) | |
| Sound card | ALC662 Hi-Fi Sound Card (Line-out, Mic-in) | |
Power supply | DC +12V~+24V voltage, DC+12V 5A is recommended, 9-24V is optional | |
Temperature | Operating temperature -20°C to +75°C, (-40°C to +85°C optional) | |
Size | 110mmx 82mm | |
Cooling system | Fanless design | |
Operating system | Win7, Win10, Linux | |
Ordering Information | |||
model | describe | ||
PCM-B252-A10-X | Display: 1x VGA 1x HDMI 1XLVDS(6bit) Memory 4G Temperature: -20°C to +75°C | ||
PCM-B252-A11-X | Display : 1x eDP + 1x HDMI or 1x eDP + 1x VGA | ||
PCM-B252W-A10-X | Display : 2x HDMI or 1x VGA+1x HDMI | ||
PCM-B252W-A11-X | Display : 1x LVDS+ 1x HDMI or 1x LVDS+ 1x VGA Temperature :-40°C to +85°C | ||
Note: X stands for CPU model, CPU includes: E3805,E3815,E3825,E3826,E3827,E3845,J1900.N2807 | |||
